Modular 1-12 Colors Various Shapes Plastic Jar And Bottle Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1788 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1 To 12 | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Plastic Jar Bottle Screen Printing Machine,12 Colors Bottle Screen Printing Machine,Modular Bottle Screen Printing Machine |
||
Product Description
Various Shapes Plastic Bottle & Jar Printer Modular Screen Printing Machine 1-12 Colors
It is the result of nearly 30 years of machine design experience. It combines feeding and discharging, surface treatment, screen printing and UV curing. The linear modular structure allows for an integrated production line of up to 12 colors. Precise design and manufacture can realize electromechanical synchronization, high degree of automation, simple and convenient operation by man-machine dialogue, novel appearance of inlet and outlet materials and safety protection of the main machine, new transmission design makes the machine run stably and quickly, easy to transfer in different shapes of containers, easy to operate and save manpower. The technology is in the leading position in China.
1. Features:
SL1788: This automatic printer can print on cylindrical, oval and square plastic bottles with different colors of UV inks. With more than 1,000 units sold worldwide, it is the most popular machine on the market.

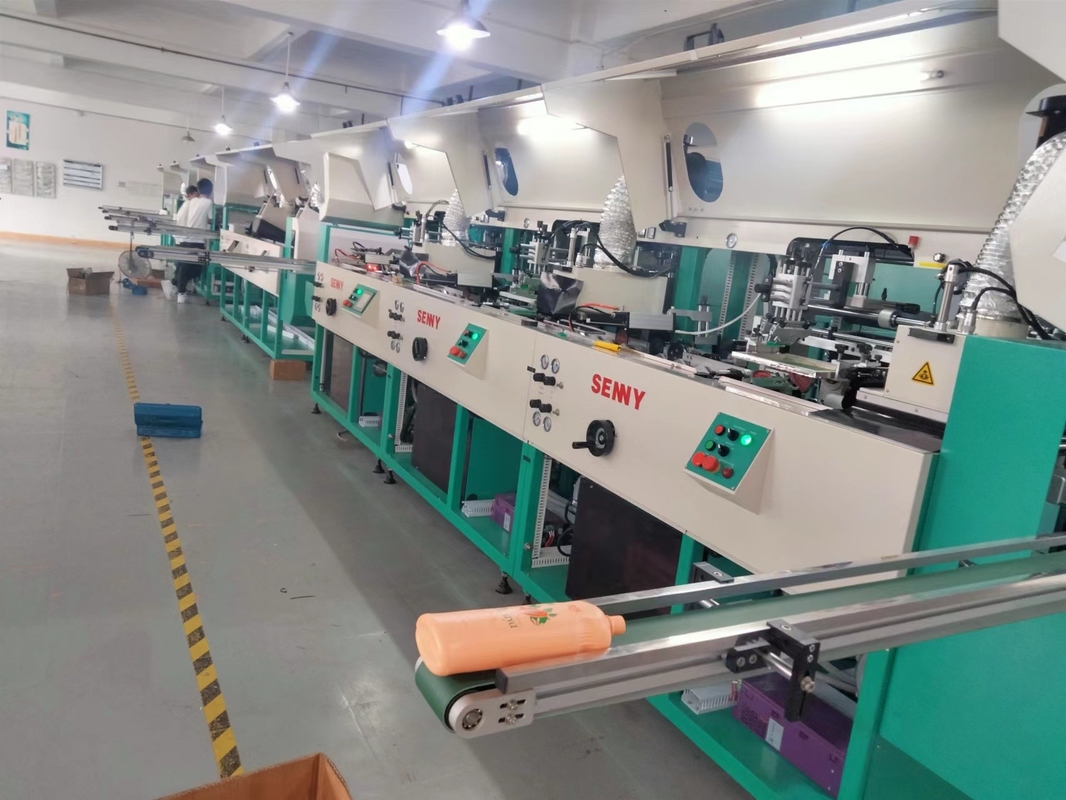

The machine has a modular construction, with each module including flame treatment, screen printing and UV curing functions, and linear connections for up to an 8-color integrated production line.
The machine can be connected to a foil stamping or labeling module for a multifunctional printing line with screen printing plus foil stamping or labeling, or to a visual product inspection module after printing to replace manual inspection.
The bottle feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual bottle feeding. After the printing process, the discharge can be connected to the bagging machine to save labor.
2. Technical Specifications
| Machine running speed | Up to 85pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-160mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1190mm * W 1200mm * H 2000mm |
3. Applicable industries:
The machine is mainly used for cosmetics, daily chemicals, food, drugs, health care products, baby products, automotive products, cleaning products, alcohol, glass glue, toys, sporting goods and so on.
4. Scope of application:
The machine is suitable for single or multi-color screen printing on the surface of containers of various shapes such as round, oval, square and complex shapes. Container materials include plastic, glass and metal. Containers include jars, bottles, cups, lids and rigid tubes.
5. Main functions:

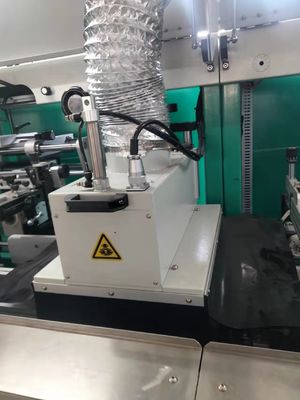

Speed drive feeding function; Manipulator vacuum directional feeding function; Speed control stepper motor drive bottle surface treatment function; Flame surface treatment function; Pre-positioning function; Pressure adjustable inflatable printing function inside the container; Automatic screen printing function; Motorized printing head lifting and lowering function for easy screen loading and unloading; High-intensity U.S. UV lamp curing function (LED-UV curing function is optional); Cylindrical containers are cured with UV light; Speed adjustable motor rotation function; Manipulator vacuum unloading function; Unloading speed control conveying function. Speed adjustable motor rotation when the cylindrical container passes through the UV curing; Robot vacuum unloading function; Unloading speed control conveyor function.
