360 Degree Printing Machine , CE Certificated CNC Bottle Screen Printer With UV Inks
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1-6 Colors | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | CNC Bottle Screen Printer,CE Certificated Bottle Screen Printer,360 Degree Bottle Screen Printer |
||
Product Description

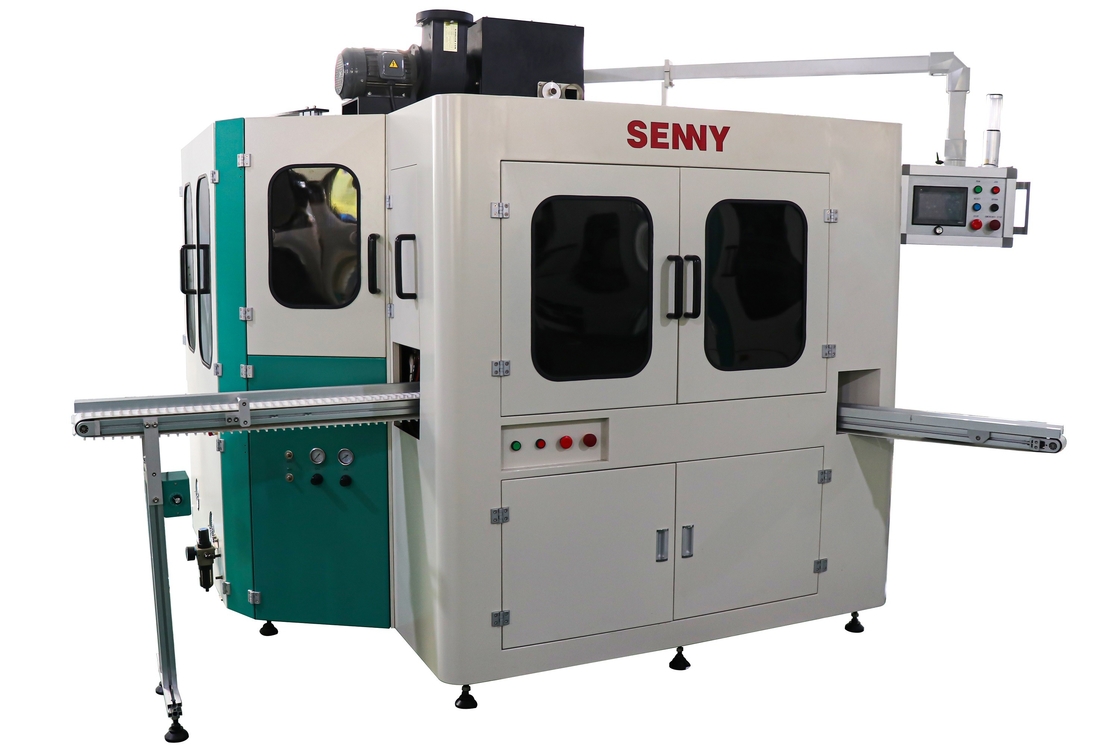

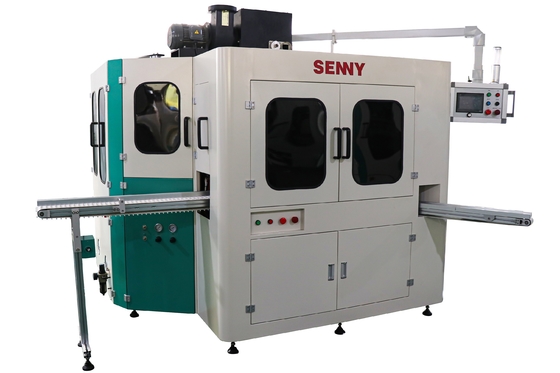

CE Certificated CNC Bottle Screen Printer With UV Inks 360 Degree Printing
Product features:
- This model is suitable for printing UV inks of various colors on plastic, metal, glass, ceramic bottles and cans of various shapes.
- The machine adopts digital control servo drive to complete various functions and printing, which can easily realize 360 degree printing for various shapes of products.
- The machine adopts integrated turntable structure, the products are rotated to different stations in one fixture to realize the functions of feeding, positioning, surface treatment, printing, curing and discharging. The products are not easily abraded and the printing accuracy is up to ±0.1mm.
- The machine can be connected with hot stamping or labeling module to become a multi-functional printing line of screen printing plus hot stamping or labeling.
- The machine can be installed with finished product inspection function to divert unqualified products instead of manual inspection.
- Feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual feeding.
- After printing, the discharge can be connected to bagging machine instead of manual bagging.
Technical Specifications:
| Specification/Model | SRS288 | SRS388 | SRS488 | SRS688 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–100mm |
| Height of bottle | 20–320mm |
| Printing length | 320mm |
| Printing height | 220m |
