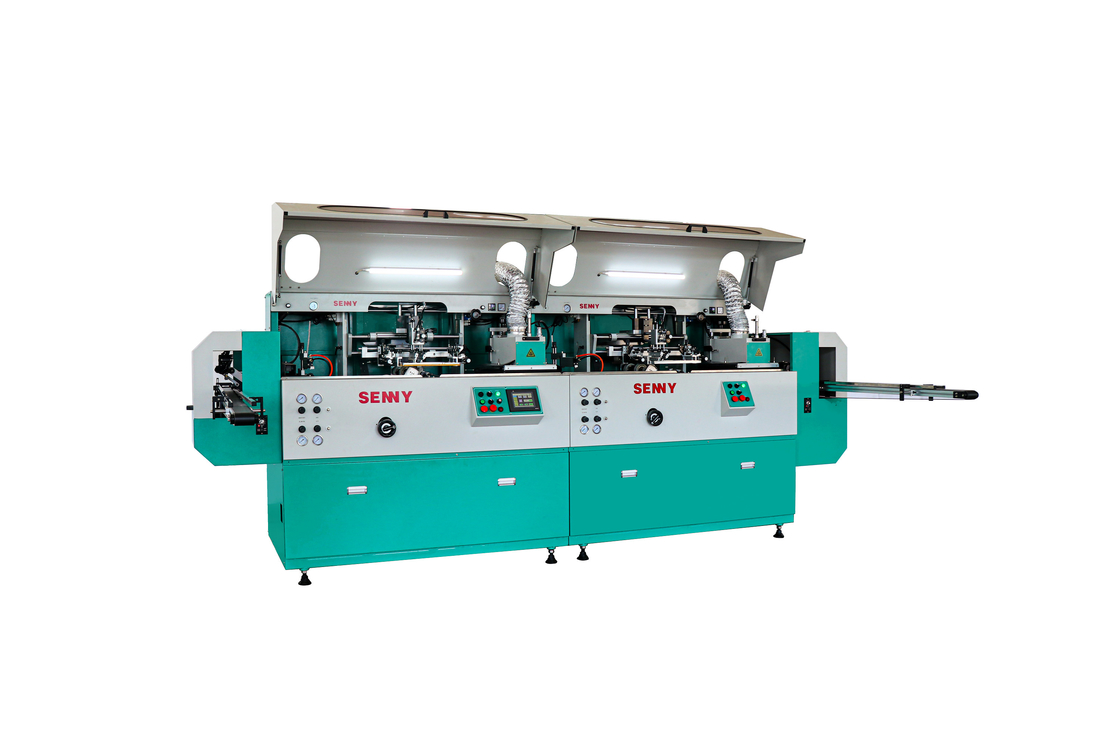

Plastic Sports Drink Bottle 2 Colors Linear Silk Screen Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1488-2C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1 To 12 | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Linear silk screen printer,2 Colors silk screen printer,Sports Drink Bottle silk screen printer |
||
Product Description
Plastic Sports Drink Bottle Screen Printer 2 Color Linear Silk Screen Printing Machine
Plastic Bottle printing machine.pdf
This machine is a new screen printer developed to realize the concept of "Simple and Efficient". It is designed for printing round, oval, square plastic containers, common glass bottles and other special products. From single color to multi-color can be freely selected and combined. The whole machine adopts mechanical synchronization design with functions of surface treatment, automatic alignment, no parts no printing, screen printing, UV curing, etc. It meets the diversity of current product printing process and can be equipped with optional automatic feeding system.
It has the advantages of high degree of automation, easy to use, high precision, high reliability, low price, simple operation and maintenance. Widely used in cosmetics industry, wine industry, home decoration industry, food industry and so on.
Technical Specifications:
|
Machine running speed |
up to 85pcs/min(printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-130mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW X colors |
| Main machine size | Length 2900mm X Width 1200mm X Height 2000mm(Exclude loading and uploading convey belt) |
| Main machine weight | 1200kg |
| Auxilary machine size | Length 1190mm X Width 1200mm X Height 2000mm |
| Auxilary machine weight | 1000kg |
| Liquefied petroleum gas pressure | 0.8-2Bar |
| Conveyor belt motor power | 0.04KVA |
| Vacuum motor power | 0.75KVA |
| Main motor power | 0.75KVA |
| Gearbox ratio | 1:20 |
| UV Power (one) | 3.35KVA |
| UV Exhaust motor power | 0.37KVA |
Machine Features
Modular machine system
Machines can be freely combined, multiple machines can be arbitrarily combined to form a multi-color screen production line, multi-color screen production line can also be separated into a separate stand-alone machine, easy to use, reduce the user's equipment costs.
Automatic feeding system
The machine can be installed according to the customer's needs, equipped with a variety of automatic feeding systems, such as vibrating disk and rotary feeder.
Surface treatment system
This machine is equipped with surface treatment system, which can effectively solve the surface treatment problems of various plastic products. It is easy to operate and can meet different needs. Before printing plastic products, surface treatment is generally required to destroy the molecular structure of the surface and enhance the adhesion of the printed pattern; there are two kinds of surface treatment processes, one is flame treatment and the other is corona treatment.
Componentless No-Print System and Adjustable Print Head System
When the fixture reaches the printing position, the printing system will not work if the machine realizes that there is no product on the transfer.
Depending on the product, the printing head stroke and printing initial action angle can be adjusted to achieve the best printing result.
UV Curing Systems/LED Curing Systems
Customers can choose different curing systems according to their needs.
UV curing technology is mature, low lamp replacement cost and low maintenance cost.
Compared with traditional high-pressure mercury lamps, LED curing is characterized by soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupation, and uniform light spot, but its disadvantage is high maintenance and replacement costs.
