Mascara Tube Lip Gloss Bottle Screen Printer 2 Colors Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SR1522 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Product Diameter: | 5-30mm | Printing Speed: | Up To 60pcs/min |
|---|---|---|---|
| Printed Colors: | 2 Colors | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Mascara Tube Bottle Screen Printer,2 Colors Bottle Screen Printer,Lip Gloss Bottle Screen Printer |
||
Product Description

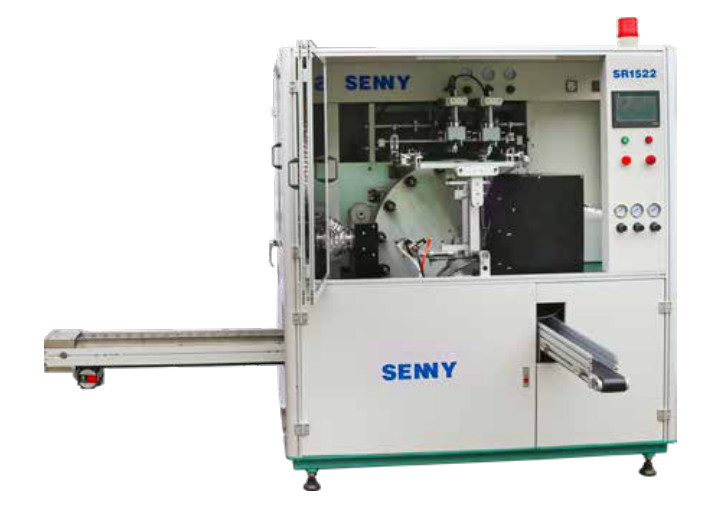

Mascara Tube Lip Gloss Bottle Screen Printer 2 Colors Screen Printing Machine
Description:
The SR1522 is primarily used for printing mascara tubes, lip gloss bottles, eyeliners, pens, and medical centrifuge tubes with or without physical register. Even without physical register, the accuracy of the 2 printed colors is guaranteed by fixing the image on the screen frame.
The machine is designed with an integrated turntable, which is fully functional and easy to operate.
Infeed conveyor with suction cup pick and place loading device
Bottle positioning
Dual head (2) flame device
Bottle-less/print-less device
Mechanical pre-search and final register device

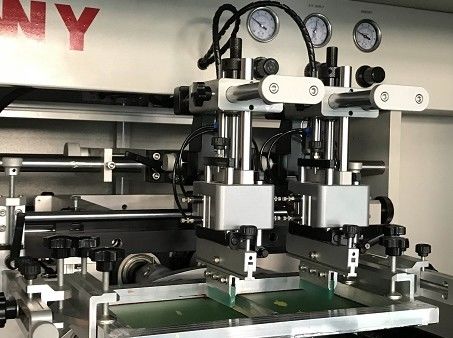

Highly accurate, precision print head, fully adjustable
Vacuum pallet loading and vacuum pallet unloading to traveling beams
UV system
Outfeed to exit conveyor
Machine Parameters:
| Model | SR1522 | SR1522-F |
| Work Station | 15 | 15 |
| Printing Speed | Up to 60pcs/min | Up to 50pcs/min |
| Product Diameter | 5-30mm | - |
| Product Length/width | - | 10-30mm |
| Product Height | 50-120mm | 50-120mm |
| Max Printing Length | 100mm | 30mm |
| Max Printing Height | 100mm | 100mm |
