Flat Bottle Screen Printer LED UV Curing Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 3 | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | LED UV Curing Bottle Screen Printer,Screen Printing Machine Bottle Screen Printer,Flat Bottle Screen Printer |
||
Product Description

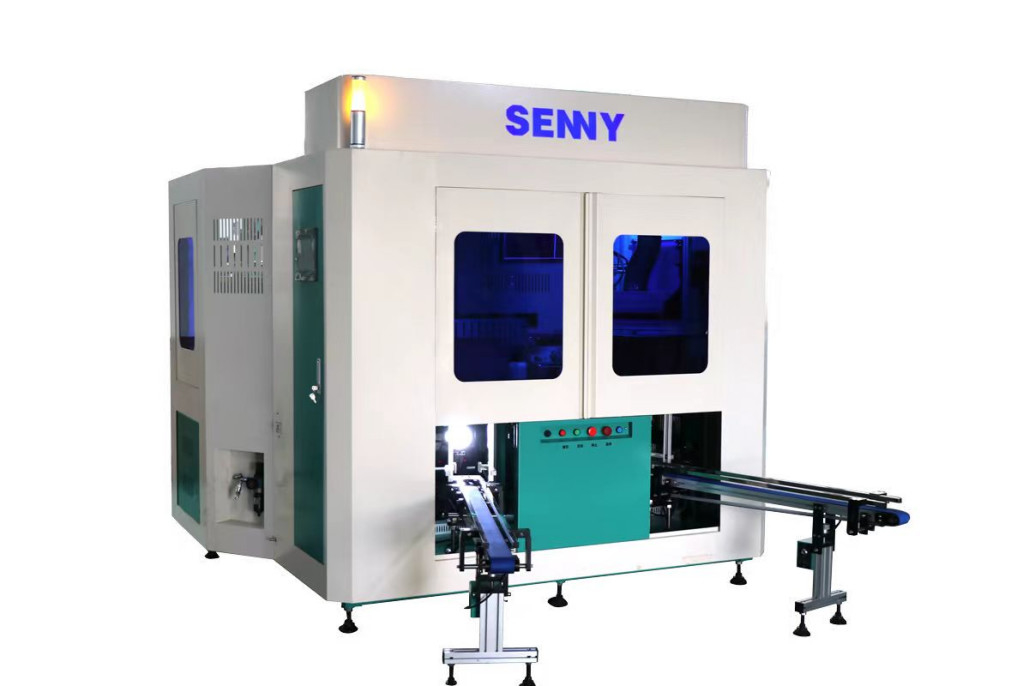

Flat Bottle 360 Degree Screen Printer LED UV Curing Screen Printing Machine
Machine Features:
The machine is suitable for screen printing various colors of UV inks, foil stamping and other decorations on containers, bottles, caps, material bottles, mugs, mascara bottles, cream jars and other products.
Developed for small container printing, the machine is compact and has a small footprint.
The machine adopts integrated turntable design, all printing functions are completed on the same set of fixture, printing accuracy is as high as ±0.1mm, and will not scratch the product.
The machine is driven by digital servo motors, which can realize 360-degree product printing, and is equipped with remote management and service functions (Industry 4.0).
The machine adopts well-known brand electrical components, PLC control system, touch screen and wireless tablet operation is easy to use and reliable performance.
Main Functions:
Wireless tablet control function;
Remote service management function;
Speed-adjustable conveyor separation feeding function;
Bottle standing robot feeding function;
Digitally controlled servo motor drive for 3-color 360-degree printing;
UV curing function;
Standing robot bottle discharge function;
Conveyor discharge function with adjustable speed.

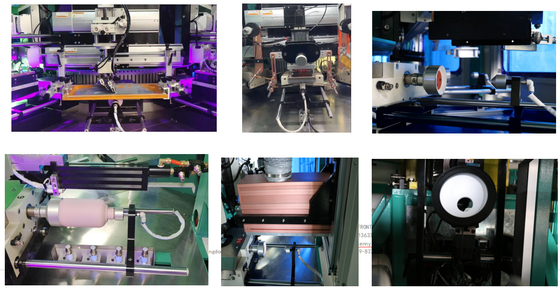

Ten workstations:
1. Visual positioning and electrostatic dusting of the bottom of the feed bottle;
2. Flame treatment
3. Visual positioning of the bottle
4. First color screen printing
5. LED-UV curing
6. Second color screen print
7. LED-UV curing
8. Third color screen printing (or hot stamping)
9. UV curing
10. Discharge.
Machine Application:
The machine is suitable for 360-degree printing of UV inks in 3 colors on bottles, cans, lids and other products of various shapes (e.g. round, oval, shaped) made of plastic, glass, metal and other materials.
Technical Specifications:
| Printing Speed | Up to 60pcs/min |
| Diameter of 360° | 13–100mm |
| Height of bottle | 20–320mm |
| Printing length | 300mm |
| Printing height | 220m |
What is the difference between a linear screen printing machine and a CNC rotary screen printing machine?
1. Straight line screen printing machine is faster than CNC rotary screen printing machine, but the printing accuracy is lower.
2. Straight line presses are modular combinations, the more colors the larger the footprint, while CNC rotary is a rotating structure that will save space.
3. CNC printers are easier to use with remote management and service feature.
4. For CNC machine, all printing functions will be done in the same set of fixture, which will avoid the product being scratched.
5. All adjustments such as printing head, screen frame etc. can be fixed by wireless tablet PC, but linear machine must be adjusted manually.
