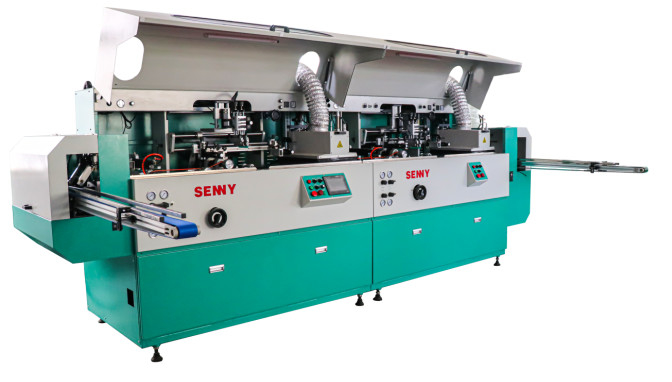

2 Colors Flat Or Oval Bottle Double Sided Printing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1488-2C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1 To 12 | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Flat 2 colour screen printing machine,Oval 2 colour screen printing machine,Bottle 2 colour screen printing machine |
||
Product Description
Flat Bottle 2 Colors Screen Printing Machine, Oval Bottle Double Sides Printing Equipment
Plastic Bottle printing machine.pdf
Machine Features:
- The machine is suitable for UV ink screen printing, hot stamping, labeling and other decorations in various colors on round, oval, square and other shapes of plastic bottles.
- The machine has perfect transmission design, stable operation, fast conversion, easy operation and excellent performance.
- The machine adopts well-known brand electrical components, touch screen and PLC control system is easy to use, reliable performance.
- The machine adopts highly customizable modular structure and can be linearly connected into 1-8 color printing machines.
- The machine comes standard with screen printing and UV curing modules, and the screen printing function is optionally interchangeable with foil stamping or labeling.
- Optionally, the machine can be connected to separate modules for hot stamping, labeling, quality inspection, etc., to combine them into one multifunctional press.
Technical Specifications:
| Machine running speed | up to 85pcs/min(printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-130mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW X colors |
| Main machine size | Length 2900mm X Width 1200mm X Height 2000mm(Exclude loading and uploading convey belt) |
| Main machine weight | 1200kg |
| Auxilary machine size | Length 1190mm X Width 1200mm X Height 2000mm |
| Auxilary machine weight | 1000kg |
Optional Configuration:
- Plasma or flame surface treatment systems.
- Hot stamping or labeling systems.
- LED-UV curing or UV curing systems.
- Automatic bottle feeder.
- Visual defect detection
Customers can choose different curing systems according to their requirements.
UV curing technology is mature, low lamp replacement cost, low maintenance cost.
Compared with traditional high-pressure mercury lamps, LED curing is characterized by soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupation, and uniform light spot, etc. However, its disadvantage is the high maintenance and replacement cost.
