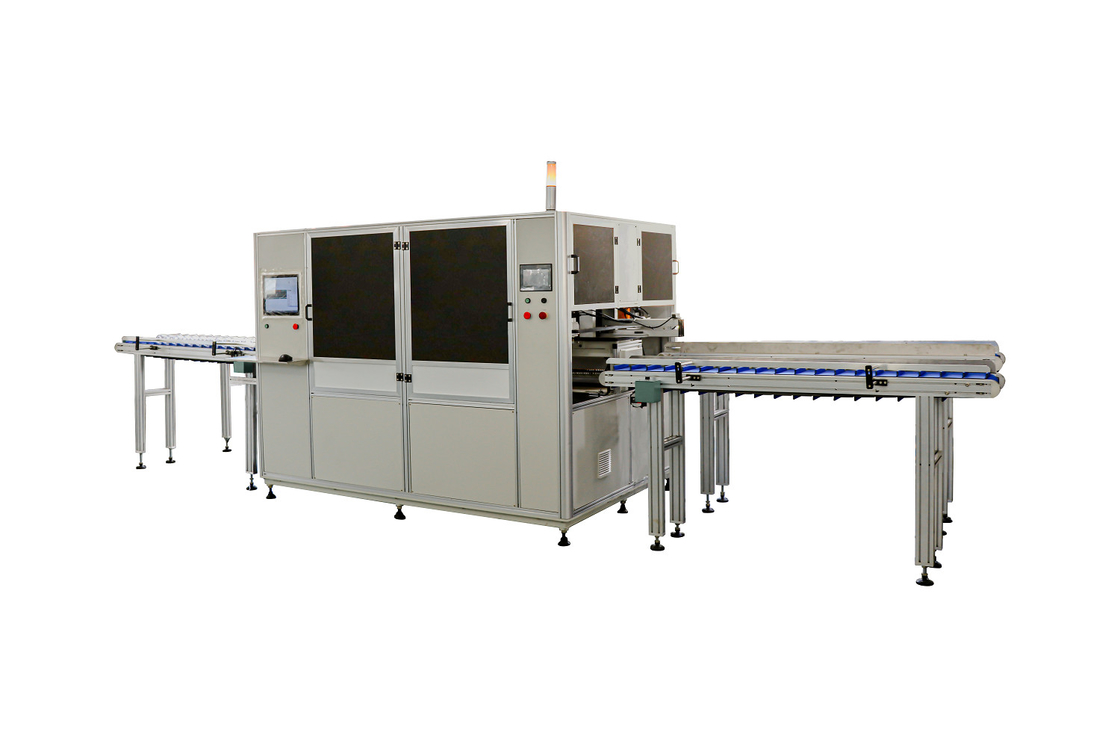

Servo Driven Bottle Screen Printer Using UV Ink Linear Track Double Column
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SLS1024 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 2 Colors | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | UV Ink Bottle Screen Printer,Linear Track Bottle Screen Printer,Double Column Bottle Screen Printer |
||
Product Description
Servo Driven Bottle Screen Printer Using UV Ink Linear Track Double Column
- This machine is suitable for printing UV inks of various colors on round bottles and cans of plastic, metal, glass and ceramics.
- The machine adopts linear rail double column printing structure, digital control servo drive to complete the printing and curing functions.
- The product is printed and cured twice on one fixture, which is not easy to be rubbed, and the printing accuracy is as high as ±0.1mm.
Technical Specifications:
| Model | SLS1024 |
| Container diameter | Φ20-Φ100mm |
| Container heigth | 50-280mm |
| Max. printing speed | Up to 5000pcs/hr |
Application:

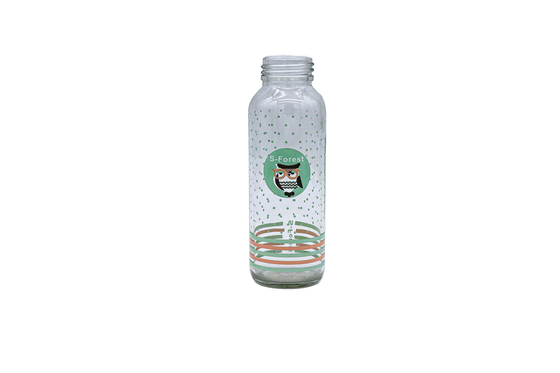

This machine is a multifunctional rotary multi-color screen printing machine. It is mainly used for printing patterns and texts on cylindrical plastic bottle caps, cylindrical glass tubes, cylindrical wine bottle caps, tube products, lighters, rubber tubes, polywood, lipsticks, flat surfaces and so on. It is characterized by simple operation, accurate positioning, high degree of automation and fast printing speed.
