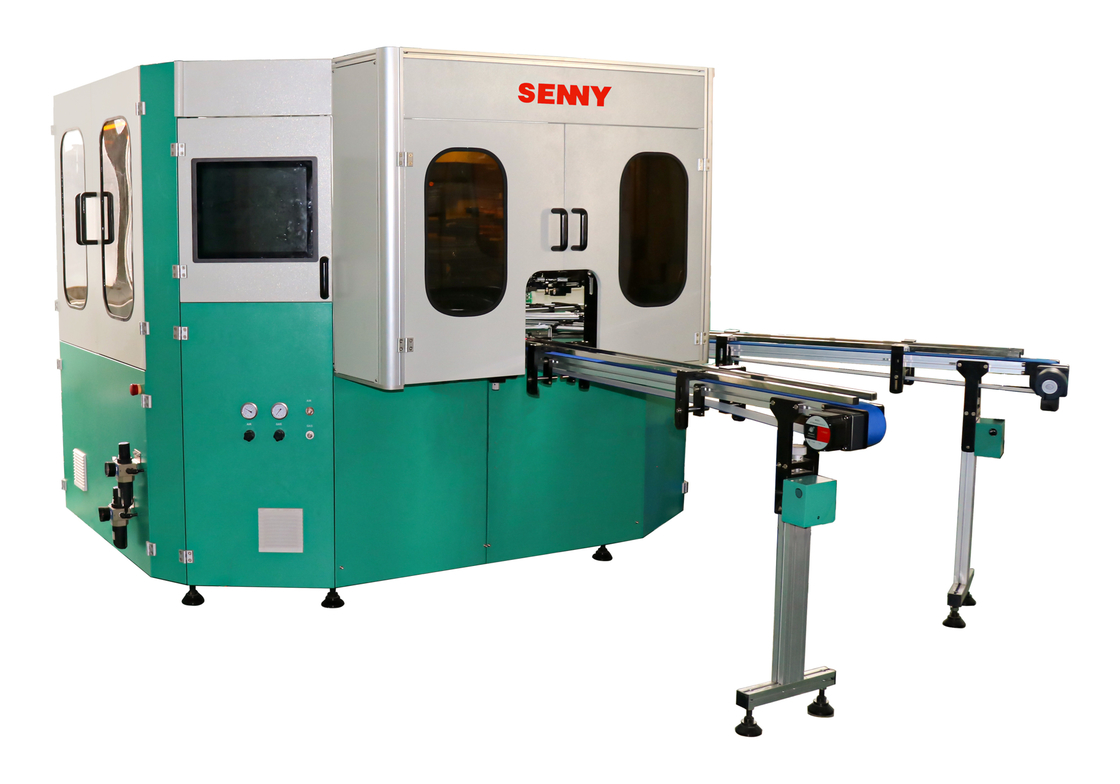

CNC Full Servo Containers Screen Printer With 60pcs/Min Printing Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS488 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 4 Colors | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Full Servo Containers Screen Printer,CNC Containers Screen Printer,60pcs/Min Containers Screen Printer |
||
Product Description
CNC Bottle Screen Printer Full Servo Container Screen Printer Printing Speed is 60pcs/min
Production speed and number of colors are indicators of machine performance.
High-performance machines must also have the following characteristics
- Ability to load and position complex shaped cans or bottles,
- Full CNC control to maximize the print area for complex shaped products,
- Quick change features and machine presets to minimize changeover times,
- In-line print check for checking each item.
Features of SRS488:
Each fixture is driven by its own servo motor, an essential requirement for CNC print motion.
Quick change fixtures shorten changeover times.
Each machine has a sturdy welded frame that ensures smooth, vibration-free operation even at high printing speeds. Critical surfaces that ensure the screen is parallel to the fixture are precision machined.
Optional Configuration:
-
Product flat feeding and discharging function.
-
Plasma surface treatment function
-
Hot stamping function
-
Bottle bottom visual registration function
-
Bottle visual registration function
-
LED-UV curing system
-
Finished product quality inspection
Technical Parameters:
- Workstations: 12
- Print speed: up to 60 pieces/minute
- 360 degree diameter: 13-100 mm
- Bottle height: 20-320 mm
- Print length: 300 mm
- Printing height: 200 mm
- Printing accuracy: ± 0.1 mm
The CNC rotary machine can process 2 - 6 colors.
