1-6 Colors CNC Screen Printer With IR Curing For Baby Feeder Bottles And Sippy Cups
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1669 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1-6 Colors | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Baby Feeder Bottles Bottle Screen Printer,IR Curing Bottle Screen Printer,6 Colors Bottle Screen Printer |
||
Product Description

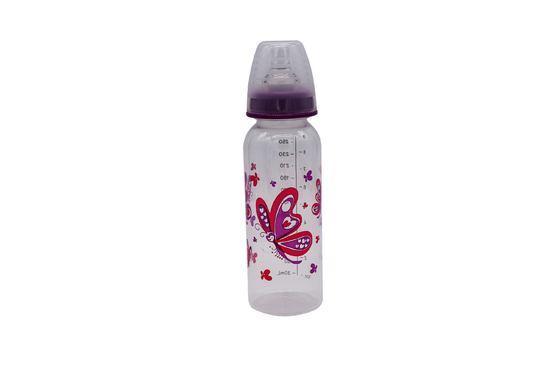

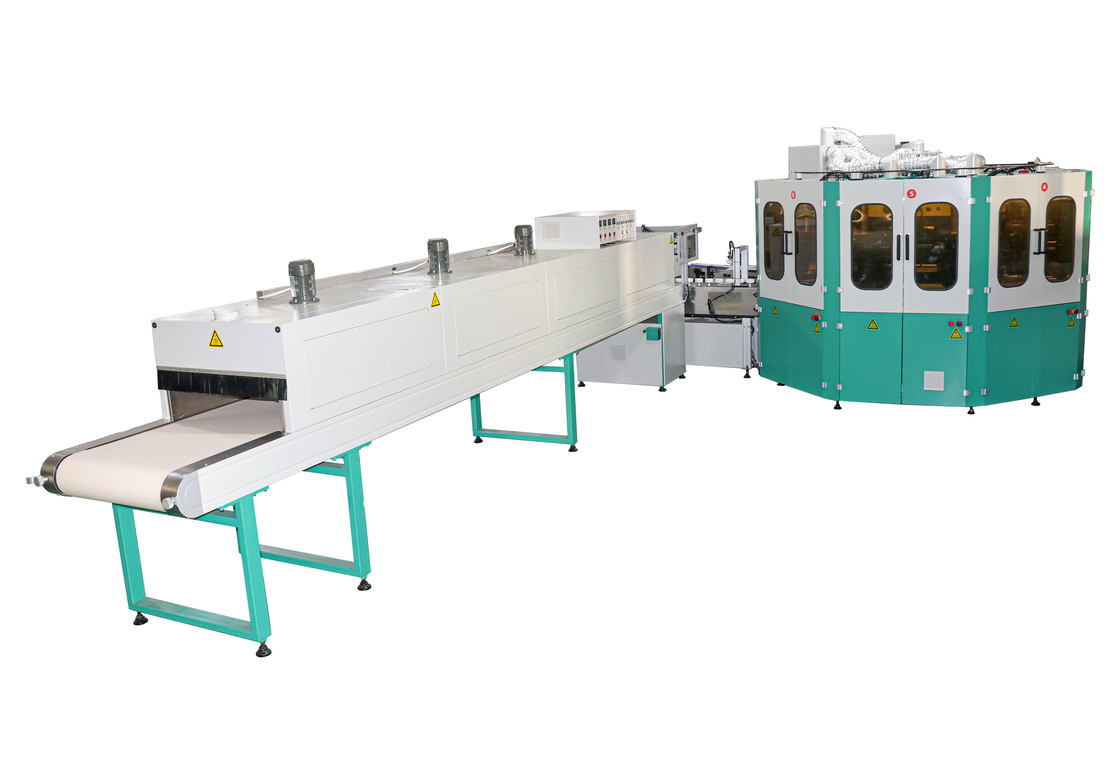

Feeder Bottle CNC Screen Printer With IR Curing For Baby Feeder Bottles And Sippy Cups 1-6 Colors
- This model is suitable for printing thermosetting inks of various colors on plastic, metal, glass material bottles and water bottles of various shapes.
- The machine adopts digital control servo drive to complete various functions and printing, which can easily realize 360-degree printing for various shapes of products.
- The machine adopts integrated turntable structure, the products are rotated to different stations in one fixture to realize the functions of feeding, positioning, surface treatment, printing, curing and discharging. The products are not easy to grind and the printing accuracy is up to ±0.1mm.
- The machine can be installed with finished product inspection function to divert unqualified products instead of manual inspection.
- The feeding conveyor can be directly connected to the bottle making equipment, or connected to the automatic bottle trimmer to replace manual feeding.
- After printing, the finished product enters a drying oven with a maximum temperature of 120° and is baked by a robot for 10 minutes to complete thorough curing.
Technical Specifications
| Specification/Model | SRS1669-IR8640 |
| Printing color | 6 |
| Station | 16 |
| Printing speed | Up to 40pcs/min |
| Diameter of 360° | 13-65mm |
| Height of bottle | 20-220mm |
| Printing length | 200mm |
| Printing height | 120m |
