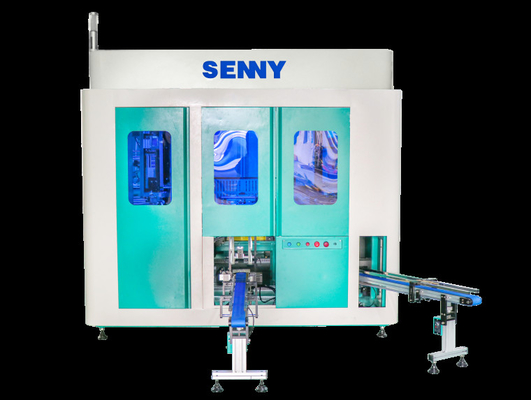

2-6 Colors Glass Bottle Servo Driven Rotary Screen Printing Machine, Printing Area 300mm X 200mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1-6 Colors | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 2-6 Colors Rotary Screen Printing Machine,Glass Bottle rotary screen printing machine,Servo Driven rotary screen printing machine |
||
Product Description
2-6 Colors Glass Bottle Screen Printing Machine, Printing Area 300mm X 200mm, Servo Driven rotary Printer
Machine application:
The machine is suitable for 360-degree printing of UV inks in 3 colors on bottles, cans, lids and other products of various shapes (e.g. round, oval, shaped) made of plastic, glass, metal and other materials.
Main Functions:
The wireless tablet control function;
The remote service management function;
Adjustable speed conveyor belt separation feeding function;
Bottle standing robot feeding function;
Digitally controlled servo motor drive for 3-color 360-degree printing;
UV curing function;
Standing robot bottle discharge function;
Conveyor discharge function with adjustable speed.
Ten workstations:
1. Visual positioning of the bottom of the feeding bottle and electrostatic dust removal;
2. Flame treatment;
3. Visual positioning of the bottle body;
4. 1st color screen printing;
5. LED-UV curing;
6. 2nd color screen printing;
7. LED-UV curing;
8. 3rd color screen printing (or hot stamping);
9. UV curing;
10. Discharging.
Machine Technical Parameter
| Printing speed | Up To 3000 Pcs/hour |
| Bottle height | 20-320mm |
| Printing diameter at 360° | ∮13mm～∮100mm |
| Liquefaction supply | 0.15Mpa |
| Air pressure | 5-7 bar |
| Power supply | AC220V 3 Phase 60Hz |
| Rated power | 30KW |
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
