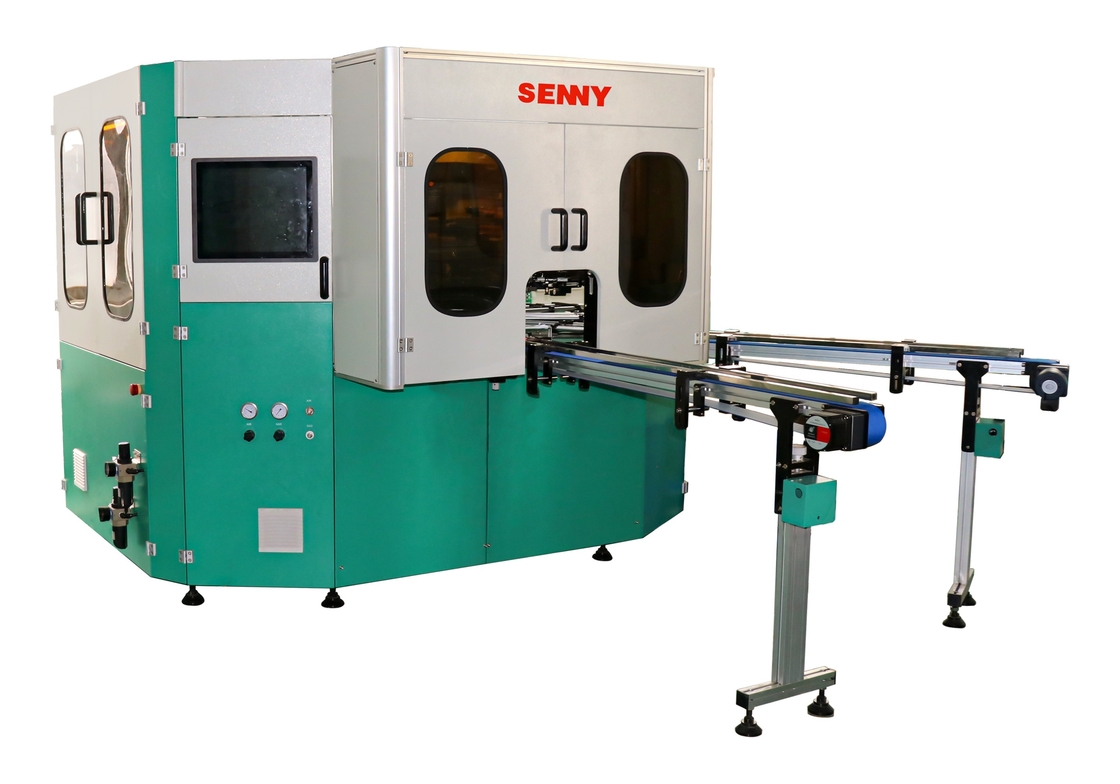

CNC Bottle Screen Printer Full Servo Container Screen Printer Printing Speed Is 60pcs/min
Product Details:
| Place of Origin: | China |
| Brand Name: | SENNY |
| Certification: | CE |
| Model Number: | SRS488 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | film wrapping |
| Delivery Time: | 60 working days |
| Supply Ability: | 10PCS /MONTH |
|
Detail Information |
|||
| Air Pressure: | 6-7 Bar | Auto Grade: | Fully Automatic |
|---|---|---|---|
| Condition: | New | Ink Type: | UV Ink |
| Printed Colors: | 4 | Printing Accuracy: | ±0.01mm |
| Printing Method: | Screen Printing | ||
| Highlight: | 60pcs/min Bottle Screen Printer,Full Servo Bottle Screen Printer |
||
Product Description
CNC Bottle Screen Printer Full Servo Container Screen Printer Printing Speed is 60pcs/min
Production speed and number of colours are indicators of machine performance.
High performance machines must also feature:
• Capabilities for loading and orientating complex shaped jars or bottles,
• Full CNC-control for maximising printing areas on complex shaped items,
• Quick change features and machine pre-setting for shortening changeover times,
• ln-line print inspection for inspecting each item.
Features of SRS488:

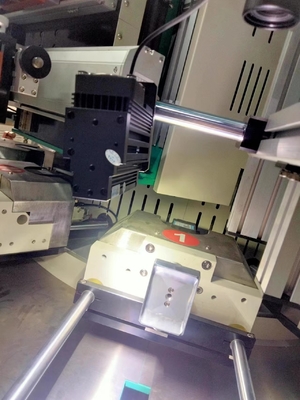

Each fixture is driven by its own servomotor, an essential requirement for CNC-control of the printing movements.
Quick change fixtures reduce changeover times.
Each machine features a solidly-built welded frame, ensuring smooth, vibration free operation even at high printing speeds. The surfaces that are crucial for ensuring that screens are parallel with the fixtures are precision machined.
Optional Configuration:
-
Product lying flat feeding and discharging function.
-
Plasma surface treatment function.
-
Hot stamping function.
-
Bottle bottom visual registration function.
-
Bottle body visual registration function.
-
LED-UV curing system.
-
Finished product quality inspection function
Technical Parameters:
- Work Station: 12
- Printing Speed: Up to 60pcs/min
- Diameter at 360 Degree: 13–100mm
- Bottle Height: 20–320mm
- Printing Length: 300mm
- Printing Height: 200mm
- Printing Accuracy: ±0.1mm
This CNC rotary machine can be 2 to 6 colors.
