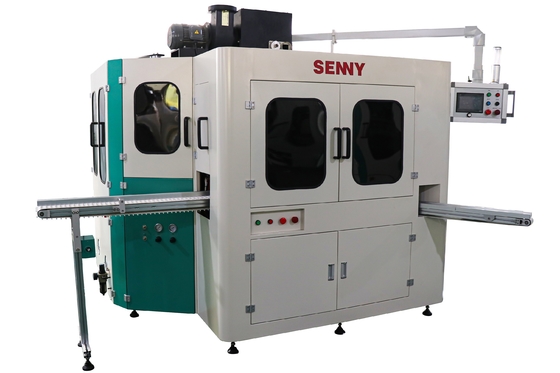

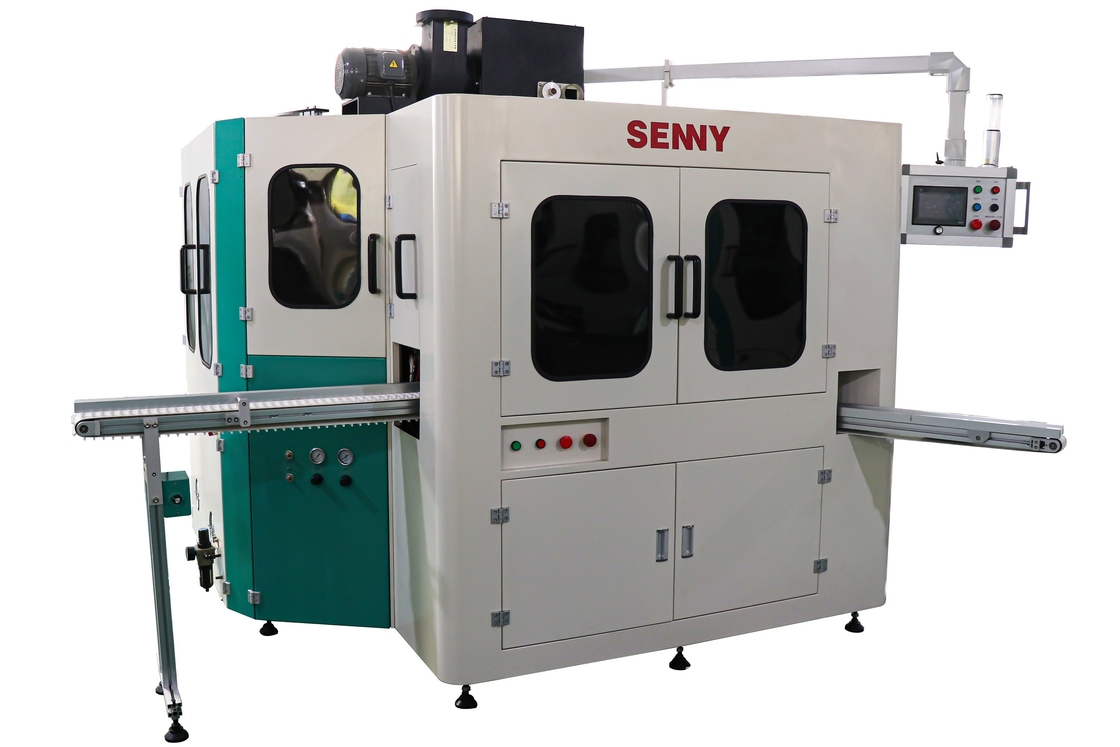

CE Certificated CNC Bottle Screen Printer With UV Inks 360 Degree Printing
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-16 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 6 | Brand: | Senny Or OEM |
| Highlight: | CE Certificated Bottle Screen Printer,UV Inks Bottle Screen Printer,360 Deg Bottle Screen Printer |
||
Product Description
CE Certificated CNC Bottle Screen Printer With UV Inks 360 Degree Printing
Product features:
- The model is suitable for printing UV inks of various colors on plastic, metal, glass, ceramics bottles and jars in diversified shapes.
- The machine adopts digital control servo drive to complete various functions and printing, and can easily realize 360 degree printing of various shapes of products
- The machine adopts an integrated turntable structure. and the product is rotated to different workstations in one fixture to realize the functions of feeding, positioning, surface treatment, printing, curing and discharging. The product is not easy to grind, and the printing accuracy is as high as ±0.1mm.
- The machine can be connected to foil stamping or labeling modules to become a multi-functional printing production line such as silk screen printing with foil stamping or labeling.
- The machine can be installed with a finished product inspection function to divert unqualified products instead of manual inspection.
-- The feeding conveyor can be connected directly with the bottle making equipment, or it can be connected to the automatic bottle unscrambler instead of manual feeding.
- After completion of printing, the discharging can be connected to a bagging machine instead of manual bagging.
Technical Specifications:
| Specification/Model | SRS288 | SRS388 | SRS488 | SRS688 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–100mm |
| Height of bottle | 20–320mm |
| Printing length | 320mm |
| Printing height | 220m |
