Plastic Jar Modular Cylindrical Bottle Screen Printer 100pcs/Min
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1466 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-12 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 12 | Brand: | Senny Or OEM |
| Highlight: | Cylindrical Bottle Screen Printer,100pcs/Min Bottle Screen Printer,SGS Bottle Screen Printing Machine |
||
Product Description
Plastic Bottle & Jar Printer Modular Cylindrical Screen Printing Machine 100pcs/Min
Features:
SL1466: The automatic printer can print on cylindrical plastic bottles with different colors of UV inks. Specially developed for round bottle printing, the debugging speed is 50% faster than traditional models, and simple to operate.

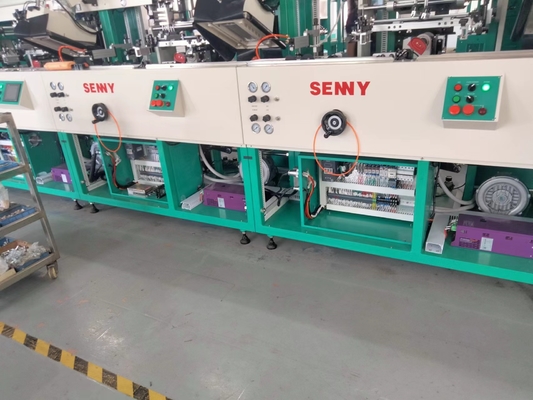

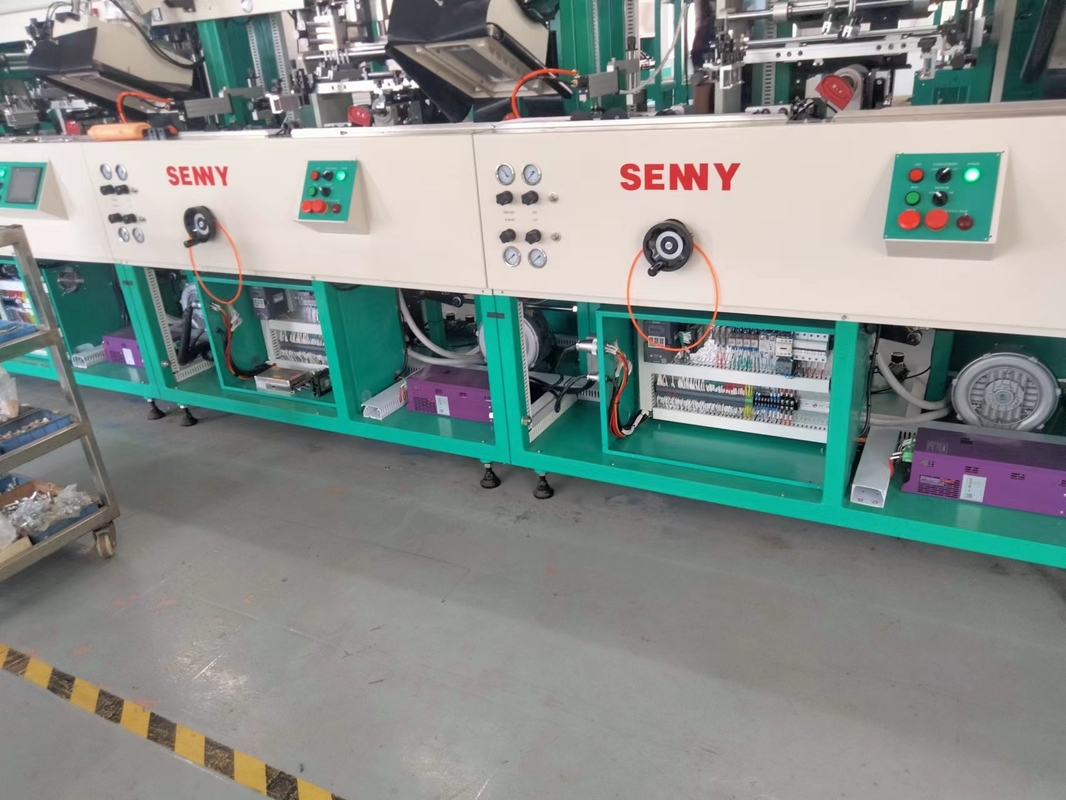

The machine adopts a modular combined structure, each module includes flame treating, screen printing and UV curing functions, and the linear connection can realize a maximum of 8-color integrated production line.
The machine can be connected to foil stamping or labeling modules to become a multi-functional printing production line such as silk screen printing with foil stamping or labeling; it can also be connected to a visual product detection module after printing to replace manual inspection.

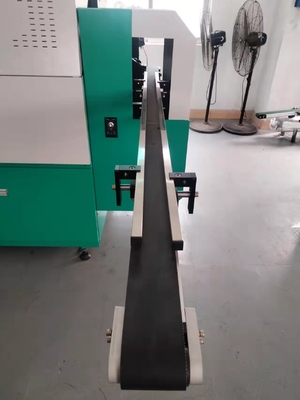

The feeding conveyor can be connected directly with the bottle making equipment, or it can be connected to the automatic bottle unscrambler instead of manual feeding. After printing process, the discharging can be connected to a bagging machine to save labors.
Technical Specifications
| Machine running speed | Up to 100pcs/min |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
Main functions:

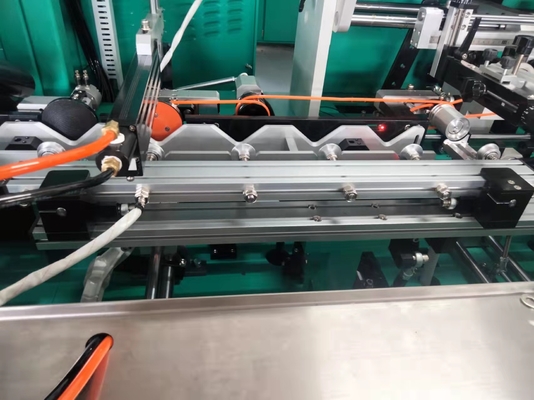

Speed transmission feeding function; Vacuum directional feeding function of manipulator; Main engine speed regulating motor drive surface treatment function; Electrostatic dust removal function; Flame surface treatment function; Prepositioning function; Adjustable pressure inflatable printing function in the container; Automatic screen printing function; Electric printing head lifting function is convenient for screen loading and unloading; Screen electric lift easy to wipe the screen function; High strength American UV lamp curing function(LED-UV curing fuction can be optional); Speed regulating motor rotation function when cylindrical containers passing through the UV; Manipulator vacuum discharging function; Discharging speed control conveying function.
Customer Factory using our machine
