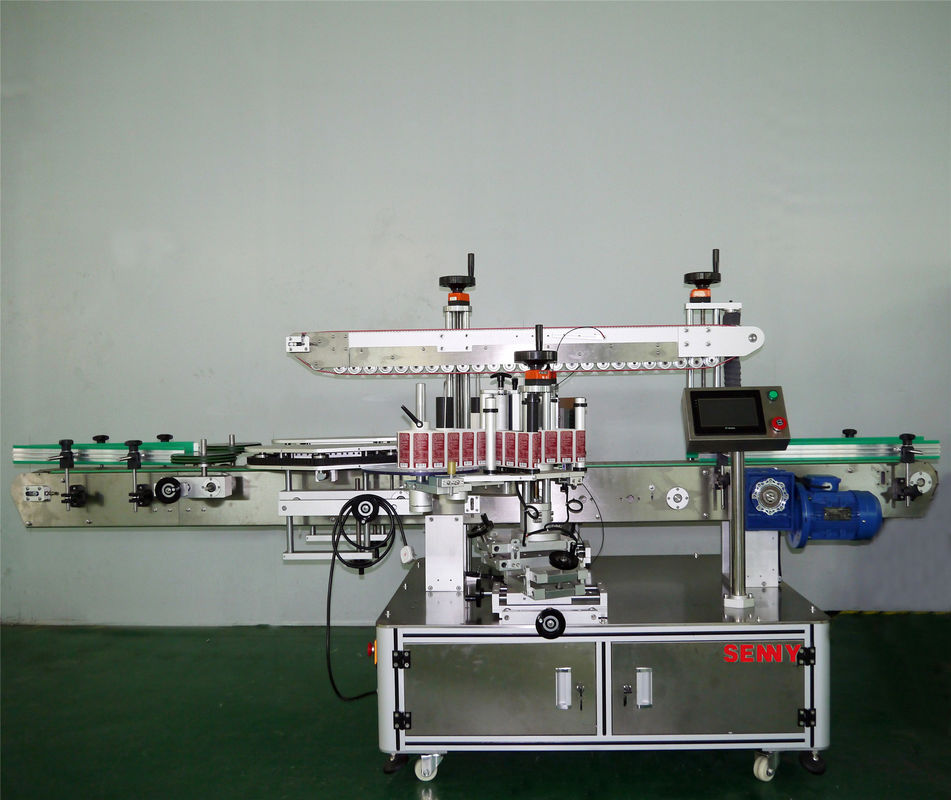

1.8 Kw Self Adhesive Labelling Machine , 200pcs/Min Auto Label Applicator
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SY100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Product Shape: | Oval And Square | Machine Type: | Labeling Stickers |
|---|---|---|---|
| Printing Durability: | High Durability | Weight: | 370kg |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Self Adhesive Auto Label Applicator,1.8 Kw Labelling Machine,200pcs/Min Labelling Machine |
||
Product Description
Flat And Oval Bottles Self Adhesive Automatic Labeling Machine In Food, Cosmetic, Daily Chemicals, Plastics
Technical specification
| Model | SY100 | Labeling accuracy | ±1mm |
| Sticker length | 20-200mm | Sticker turning out speed | 5-40mm/min |
| Sticker width | 20-180mm | Labeling speed | 50-200pcs/min |
| Product length | 20-250mm | Conveying speed | 5-35m/min |
| Product width | 30-90mm | Weight | 330kg |
| Product height | 60-280mm | Power voltage | 220V 50HZ |
| Product diameter | 45-100mm | Power | 1.8KW |
| Sticker roll's external diameter | φ280mm | Conveying orientation | fm left to right |
| Sticker roll's inner diameter | φ76mm | Machine dimensions | 3000*1500*1600mm |
Application:
Applicable labels: self-adhesive labels, self-adhesive films, electronic regulatory codes, bar codes, etc;
Applicable products: items that need to be labeled on side planes, side surfaces, large curved surfaces and circumferential surfaces;
Application industries: widely used in printing, cosmetics, food, toys, daily chemicals, electronics, plastics, medicine and other industries;

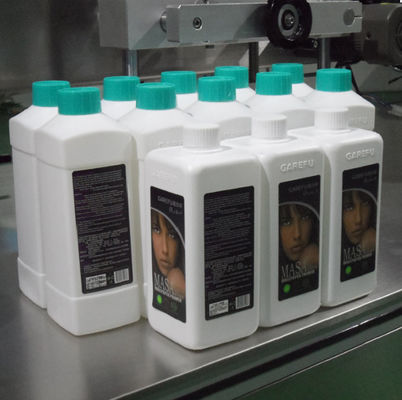

Application examples: shampoo flat bottle labeling, lubricant flat bottle labeling, mineral water square bottle labeling, wine labeling and so on.
Product Features:
1. Powerful function, one machine can realize single/double sided labeling for various products;
2. Adopting double-sided rigid plastic synchronized guide chain, automatically ensuring bottle neutrality, low requirements for workers to put bottles and connect with assembly line, greatly reducing the difficulty of workers' operation or connection with assembly line. It can be produced by single machine or connected with assembly line;
3. Equipped with elastic top pressing mechanism to ensure stable product conveying and effectively eliminate bottle height error;
4. Equipped with automatic bottle separating mechanism, which can automatically separate the distance before guiding bottles to ensure the stability of subsequent bottle guiding, conveying and labeling;
5. Equipped with double re-labeling mechanism, to ensure the first labeling accuracy, double extrusion re-labeling, effectively eliminating air bubbles, to ensure that the labeling head and tail tight;
6. Intelligent control, high stability, automatic photoelectric tracking, no labeling, to avoid wasting labels;
7. The main materials of the equipment are stainless steel and high-grade aluminum alloy. The overall structure is sturdy and beautiful;
8. With fault shutdown, production counting, power saving, production quantity setting shutdown, parameter setting protection and other functions, convenient for production management;
9. Optional functions and components: thermal coding / inkjet, automatic feeding, automatic receiving, additional labeling devices, other labeling devices (customized according to customer requirements).
