1470W 30pcs/Min Automatic Labeling Equipment For Wine Bottle

Product Description

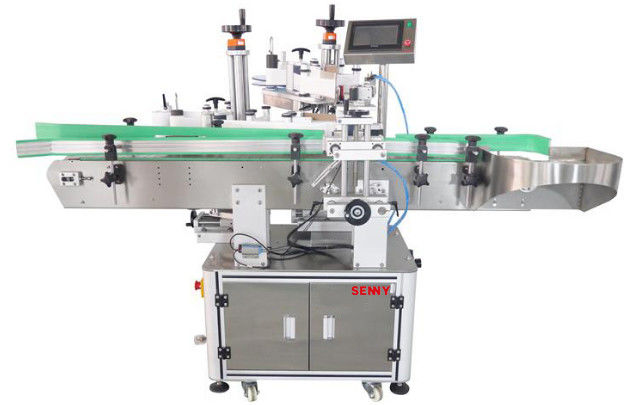

Automatic Cylindrical Wine Bottles Labeling Machine To Label Upper And Lower 2 Stickers

Catalog 05- labeling machine-1.pdf

SY550 Working Process:
Bottle loading --- bottle splitting --- bottle detection --- cylinder positioning --- labeling and pressing labels --- label detection --- cylinder reset --- bottle placing --- product delivery.

1. The bottle enters the conveyor belt from the left side;
2. The bottle dividing mechanism slows down the conveying speed of the workpieces, so that the workpieces can be separated by a distance to ensure the time for the subsequent labeling;
3. After the workpiece is detected, the positioning cylinder extends to press the workpiece;
4. After positioning the workpiece, after a set time, the traction motor rotates to send out the label, and at the same time rotates to re label;
5. After labeling, the positioning cylinder returns and the workpiece leaves the labeling position with the conveyor belt;
6. Put a bottle in the upper bottle separating mechanism - label continuously according to the upper cycle.

Application:
It can be used to label all kinds of cylindrical items, such as food cans, cosmetics round bottles, medicine bottles, etc; If there is another color matching tape coding machine, it can realize labeling and print production batch number and other information at the same time.

Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
