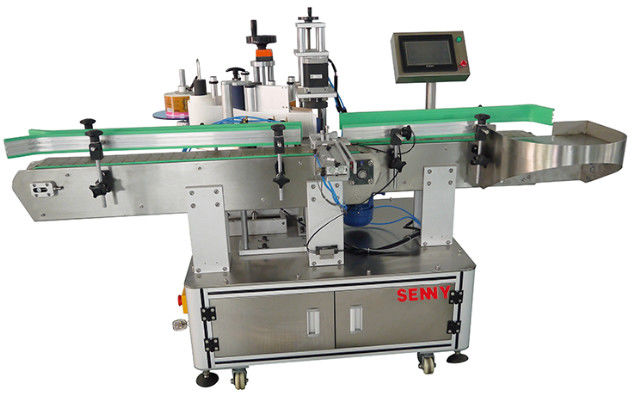

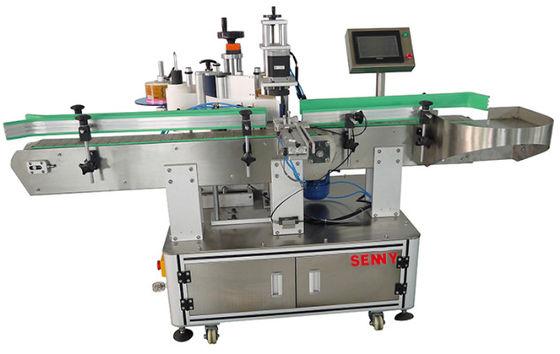

1200W 35pcs/Min Automatic Labeling Machine For Cylindrical Cans
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SY700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 100pcs /month |
|
Detail Information |
|||
| Plate Type: | Labeling Stickers | Product Shape: | Square And Polygonal |
|---|---|---|---|
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Weight: | 200kg | Power Voltage: | 220V 50HZ |
| Highlight: | 35pcs/min automatic labeling machine,1200W automatic labeling machine,1200W automatic can labeling machine |
||
Product Description
Automatic Circumferential/Semi-Circumferential Labeling Machine For Polygonal Cylindrical Bottles/Cans
Application:
It can be used for all kinds of cylindrical articles, such as food can, cosmetic round bottle, medical bottle, etc; If the color belt marking machine is equipped, the labeling can be realized and the production batch number and other information can be printed.
Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
| Model |
SY700 |
Labeling speed |
15～35pcs/min |
| Sticker length |
20mm～220mm |
Conveying speed |
5～30m/min |
| Sticker width |
20mm～150mm |
Weight |
200kg |
| Product diameter |
Φ50mm～Φ120mm |
Power voltage |
220V 50HZ |
| Product height |
50mm～200mm |
Power |
1.2KW |
| Sticker roll's external diameter |
Φ280mm |
Air pressure |
0.4～0.6Mpa |
| Sticker roll's inner diameter |
Φ76mm |
Conveying orientation |
fm let to right |
| Labeling accuracy |
±1mm |
Way of labeling |
rolling way |
| Sticker turning out speed |
5～25m/min |
Machine dimensions |
2000*1500*1270mm |
Product Features:
1. User friendly touch screen, easy to operate, full-featured, with rich online-help function, can preset labeling parameters, multiple warning prompt, labeling quantity management;
2. Powerful function, single label labeling and double label labeling of round bottle, square bottle and polygon object can be realized by the same equipment, the double label spacing can be adjusted flexibly, and the circular positioning detection device can realize the function of positioning and labeling on the circular surface;
3. Intelligent control, automatic photoelectric tracking and identification, no labeling, prevent label waste;
4. With high stability, the advanced electronic control system is composed of Panasonic PLC + maintenance control touch screen + Panasonic needle shaped electric eye + laoyishi / italitis label electric eye, which supports 7x24 hour operation of the equipment;
5. It has production counting function, production number setting prompt function, parameter setting protection function, which is convenient for production management;
6. Optional functions: hot coding / inkjet, automatic loading and unloading, automatic receiving, adding labeling device, no label bottle removal function (customized according to customer requirements).
