2000W 50pcs/Minute Automatic Labeling Machine For Square Bottle
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SY500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Product Shape: | Square And Polygonal | Machine Type: | Labeling Stickers |
|---|---|---|---|
| Printing Durability: | High Durability | Weight: | 370kg |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 2000W Automatic Labeling Machine,50pcs/Minute Automatic Labeling Machine,Square Bottle Automatic Labeling Machine |
||
Product Description

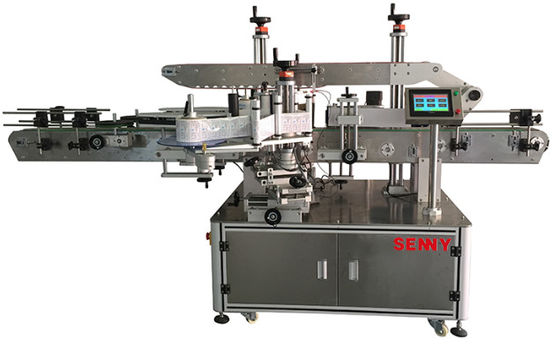

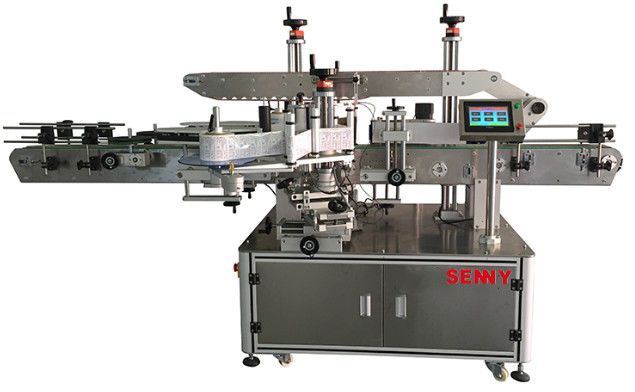

Automatic Multi-Functional Labeling Machine For Labeling Side Stickers, Elliptical/Square/Round Bottles
This equipment can realize double-sided labeling function and can meet the single/double-sided labeling of flat and square bottles. It is widely used in cosmetic industry, daily chemical industry and other industries.
Technical specifications (The following are the technical parameters of the standard model. (Other special requirements and functions can be customized):
| Model |
SY500 |
Labeling accuracy |
±1mm |
| Sticker length |
20mm～220mm |
Sticker turning out speed |
5～25m/min |
| Sticker width |
20mm～150mm |
Labeling speed |
30～150pcs/min |
| Product length |
20mm～250mm |
Conveying speed |
5～35m/min |
| Product width |
30mm～90mm |
Weight |
370kg |
| Product height |
60mm～280mm |
Power voltage |
220V 50HZ |
| Product diameter |
40mm～110 mm |
Power |
2KW |
| Sticker roll's external diameter |
Φ280mm |
Conveying oriention |
fm left to side |
| Sticker roll's inner diameter |
Φ76mm |
Machine dimensions |
3000*1400*1600mm |
SY500 Working Process:
Product infeed --- Transportation --- Guiding the product to the right direction --- Top-pressure transportation --- Inspection --- Labeling --- Embossing --- Secondary embossing (partial product) --- Product output.
