SGS Auto Sticker Labelling Machine , 15pcs/Minute Auto Label Applicator
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SY700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Product Shape: | Square And Polygonal | Machine Type: | Labeling Stickers |
|---|---|---|---|
| Printing Durability: | High Durability | Condition: | New |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | SGS Auto Sticker Labelling Machine,15pcs/Minute Auto Sticker Labelling Machine,Auto Sticker Labelling Machine |
||
Product Description

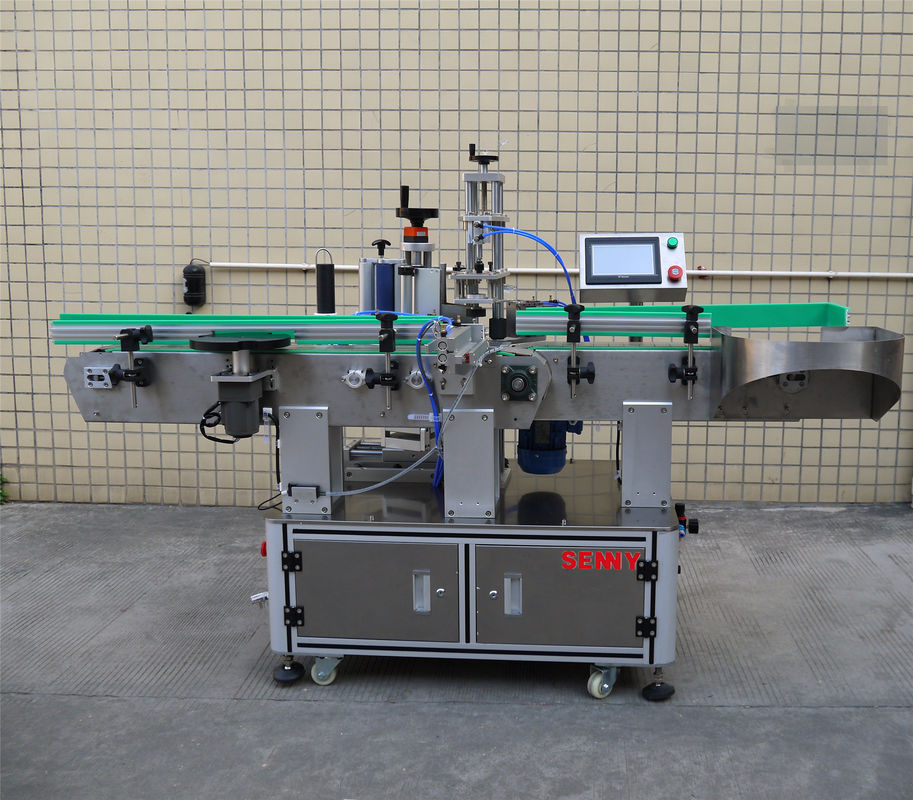

Automatic Circumferential/Semi-Circumferential Labeling Machine For Polygonal Cylindrical Bottles/Cans
Product Features:
1. Ueling quantity management;
2. Powerful functions, can realize single labeling and double labeling of round bottles, square bottles, polygonal objects on the same equipment, double labeling spacing can be flexibly adjusted, circular positioning detection device can realize the function of positioning labeling on round surface;
3. Intelligent control, automatic photoelectric tracking identification, no need to label, prevent labeling waste;
4. High stability, advanced electronic control system consists of Panasonic PLC + maintenance control touch screen + Panasonic needle electric eye + Lloyds/Italite labeling electric eye, support equipment 7x24 hours operation;
5. With production counting function, production number setting prompt function, parameter setting protection function, convenient production management;
6. Optional functions: thermal coding / inkjet, automatic loading and unloading, automatic receipt, increase the labeling device, label-free bottle removal function (customized according to customer requirements).
Application:
It can be used for a variety of cylindrical items, such as food cans, cosmetic round bottles, medical bottles, etc. If equipped with a ribbon marking machine, it can realize labeling and printing of production lot numbers and other information.
Technical specifications (The following are the technical parameters of the standard model. (Other special requirements and functions can be customized):
| Model |
SY700 |
Labeling speed |
15～35pcs/min |
| Sticker length |
20mm～220mm |
Conveying speed |
5～30m/min |
| Sticker width |
20mm～150mm |
Weight |
200kg |
| Product diameter |
Φ50mm～Φ120mm |
Power voltage |
220V 50HZ |
| Product height |
50mm～200mm |
Power |
1.2KW |
| Sticker roll's external diameter |
Φ280mm |
Air pressure |
0.4～0.6Mpa |
| Sticker roll's inner diameter |
Φ76mm |
Conveying orientation |
fm let to right |
| Labeling accuracy |
±1mm |
Way of labeling |
rolling way |
| Sticker turning out speed |
5～25m/min |
Machine dimensions |
2000*1500*1270mm |
Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
