1470W 30pcs/Minute Auto Labeling Equipment For Wine Bottles

Product Description

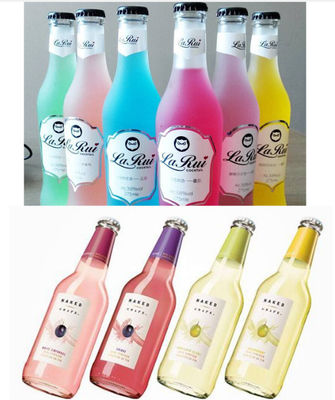

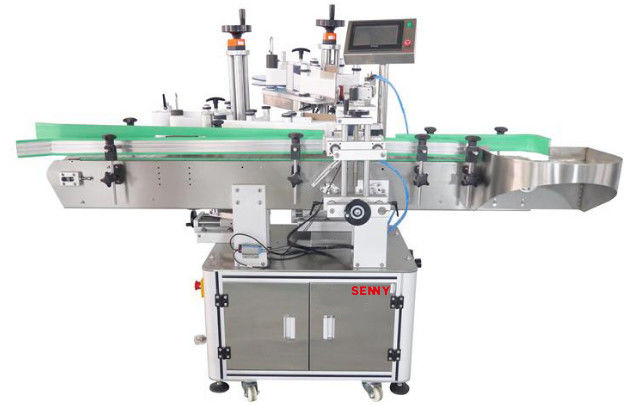

Automatic Cylindrical Wine Bottles Labeling Machine To Label Upper And Lower 2 Stickers

Catalog 05- labeling machine-1.pdf

SY550 Working Process:

Bottling - Bottle separation - Bottle inspection - Cylinder positioning - Labeling and embossing - Label inspection - Cylinder reset - Bottle placement - Product delivery.

1. Bottles enter the conveyor from the left side;
2. The bottle separating mechanism slows down the conveying speed of the workpieces so that there is a certain distance between the workpieces to ensure the subsequent labeling time;
3. After detecting the workpiece, the positioning cylinder extends to press the workpiece;
4. After the workpiece is positioned, after a set time, the traction motor rotates to issue the label and simultaneously rotates to re-label the workpiece;
5. After labeling is completed, the positioning cylinder returns and the workpiece leaves the labeling position with the conveyor;
6. The bottle is put into the upper bottle separating mechanism - according to the upper cycle of continuous labeling.

Application:

It can be used for labeling food cans, cosmetic round bottles, medicine bottles and other cylindrical items; if there are other color-coordinated tape coding machine, it can realize labeling and printing production lot number and other information at the same time.

Technical parameters (The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
