0.6mpa 1.5KW Auto Sticker Labeling Machine For Round Bottle
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SY300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Machine Type: | Labeling Stickers |
|---|---|---|---|
| Printing Durability: | High Durability | Condition: | New |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 1.5KW Auto Sticker Labeling Machine,0.6mpa Auto Sticker Labeling Machine,Round Bottle Auto Sticker Labeling Machine |
||
Product Description

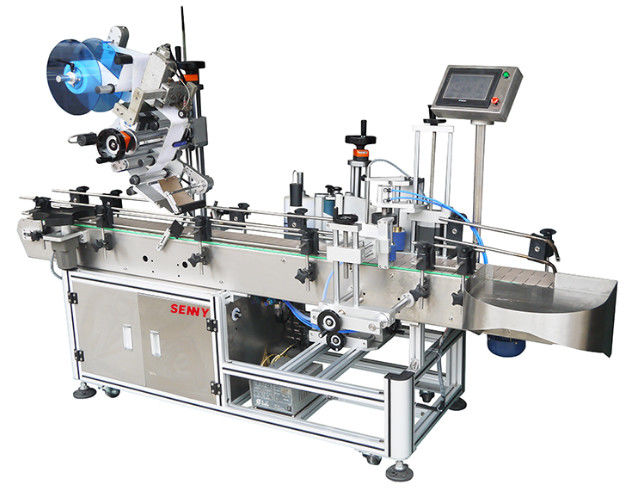

Upper Plane And Circumferential Sticker Automatic Labeling Machine For Round Cans/Bottles
Application:
Applicable labels: self-adhesive labels, self-adhesive films, electronic regulatory codes, bar codes (can also be applied to two different labels at the same time).
Applicable products: products that need to paste labels on the plane and circumference.
Application industries: widely used in food, daily chemicals, alcohol, medicine, toys, cosmetics, electronics, hardware, plastics and other industries.
Application examples: food can labeling, mosquito coil box labeling, double-sided labeling of red wine bottles, etc.
Technical specifications (The following are the technical parameters of the standard model. (Other special requirements and functions can be customized):
| Model |
SY300 |
Labeling speed |
30～60m/min |
| Sticker length |
20mm～220mm |
Conveying speed |
5～18m/min |
| Sticker width |
10～150mm |
Weight |
220kg |
| Product diameter |
Φ50mm～φ90mm |
Power voltage |
220V 50HZ |
| Sticker roll's external diameter |
φ280mm |
Power |
1.5KW |
| Sticker roll's inner diameter |
φ76mm |
Air Pressure | 0.4～0.6 Mpa |
| Labeling accuracy | ± 1mm | Conveying orientation | fm left to right |
| Sticker turning out speed |
5～25m/min | Machine dimensions | 2100*1100*1500mm |
Product Features:
1. Simple and easy to understand adjustment, with front and rear, left and right, up and down direction, plane angle, vertical angle adjustment seat, different bottle type switching without dead angle;
2. Automatic bottle splitting, adopting star wheel bottle splitting mechanism, effectively eliminating bottle splitting obstacles caused by bottle shape error;
3. Humanized touch screen, full-featured, online help function, can be preset labeling parameters, free switching, early warning tips, labeling quantity management;
4. Intelligent control, automatic photoelectric tracking, no labeling, fault prompts and other functions;
5. High stability, the use of Panasonic PLC + maintenance touch screen + Panasonic needle-shaped electric eye (set time when there is no production, the device automatically transferred to power saving standby state), the production quantity setting prompt function, parameter setting protection function (parameter setting by the authority management), to facilitate production management.
Packaging & Shipping:
Packing: wrapped in plastic film with seaworthy wooden crate outside.
Shipment date: 20-25 working days after receipt of deposit and sample.
Payment terms: 100% T/T or 30% deposit settled before shipment, or L/C at sight.
Company introduction:
Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.
Our founder Mr Zhu has been engaged in this area about 28 years, and always being in designing and developing line. We can make customized production line according to your specific products, and provide technical support at any time.
