Flat Plastic Bottles Hot Stamping Machine Foil Heat Printing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SHR618 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50PCS /Month |
|
Detail Information |
|||
| Automatic Grade: | Fully Automatic | Machine Type: | Hot Stamping Machine |
|---|---|---|---|
| Printing Durability: | High Durability | Condition: | New |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Hot Stamping Machine Foil Heat Printing,Flat Plastic Bottles Hot Stamping Machine |
||
Product Description

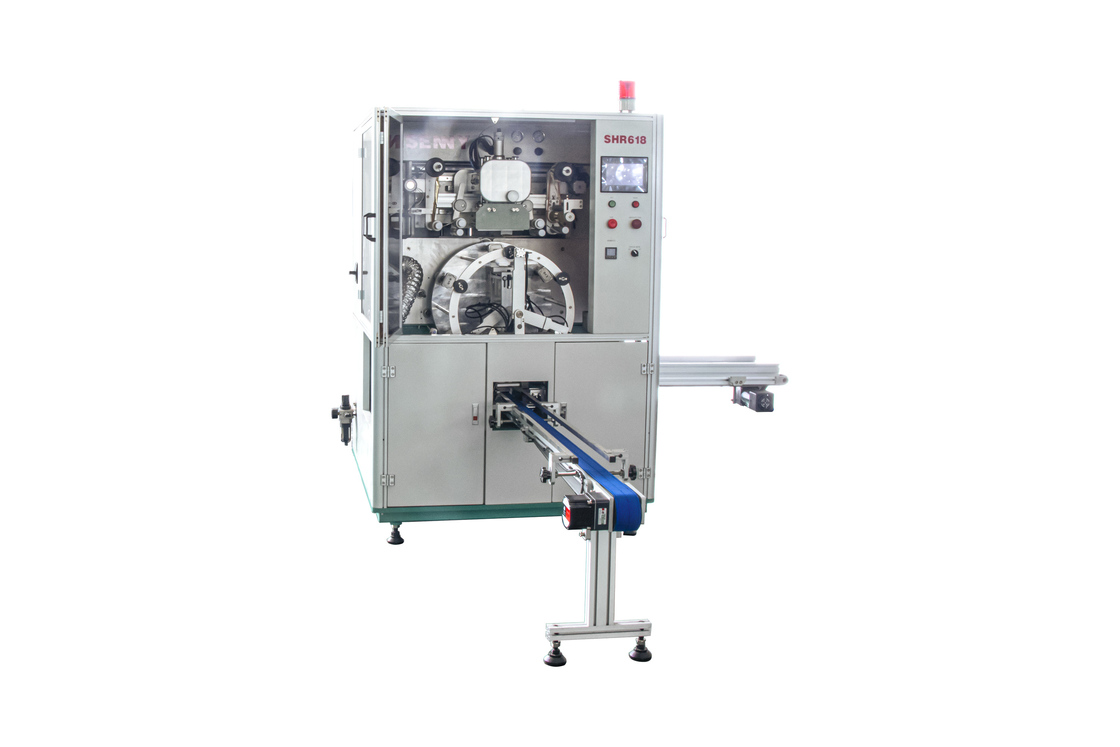

Flat Plastic Bottle Hot Stamping Machine Foil Heat Printing Equipment
SHR618 is suitable for hot stamping round, oval, square and many shapes of bottles, lids, cans and tubes. It is widely used in cosmetic industry, liquor industry.
- Configurable automatic descrambler feed
- Equipped with PLC and touch screen control panel
- The machine adopts integrated turntable design, which is fully functional and easy to operate.
- The machine adopts well-known brand electrical components, PLC control system and easy-to-use touch screen for reliable performance.
Technical Specifications:
| Specification/Model | SHR618 |
| Stamping speed | Up to 50pcs/min |
| Diameter of round bottle | 20–100mm |
| Height of bottle | 50–200mm |
| Stamping length | 200mm |
| Stamping height | 100m |
Machine Features
Automatic Feeding System
The machine can be installed according to customer's needs and equipped with a variety of automatic feeding systems, such as vibrating disk and rotary feeder.
Surface Treatment System
The machine can be installed with surface treatment system individually according to customer's needs, which can effectively solve the surface treatment problems of various plastic products, easy to operate and meet different needs. Before printing plastic products, surface treatment is generally required to destroy the molecular structure of the surface and enhance the adhesion of the printed pattern; there are two kinds of surface treatment processes, one is flame treatment and the other is corona treatment.
Componentless No-Print System and Adjustable Print Head System
When the fixture reaches the printing position, the printing system will not work if the machine finds no product on the transfer.
Depending on the product, the printing head stroke and the angle of the initial printing action can be adjusted to achieve the best printing results.
UV Curing Systems/LED Curing Systems
Customers can choose different curing systems according to their needs.
UV curing technology is mature, low lamp replacement cost and low maintenance cost.
Compared with traditional high-pressure mercury lamps, LED curing is characterized by soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupation, and uniform light spot, but its disadvantage is high maintenance and replacement costs.
