50Hz Auto Hot Stamping Machine , 7bar Hot Stamp Printer for bottles
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1669-D4CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 5 Station |
|---|---|---|---|
| Printing Color: | 4 Col Screen Printing+1 Col Hot Stamping | Product Shape: | Irregular Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Highlight: | 7bar auto hot stamping machine,50Hz auto hot stamping machine,7bar hot stamp printer |
||
Product Description

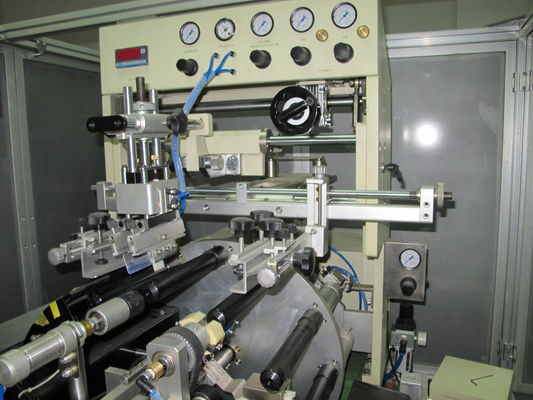

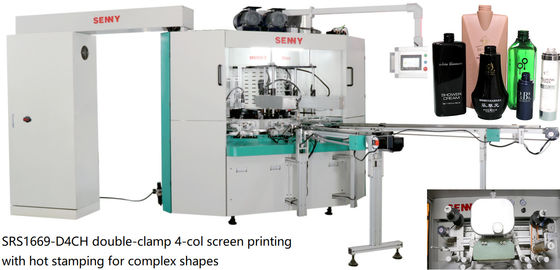

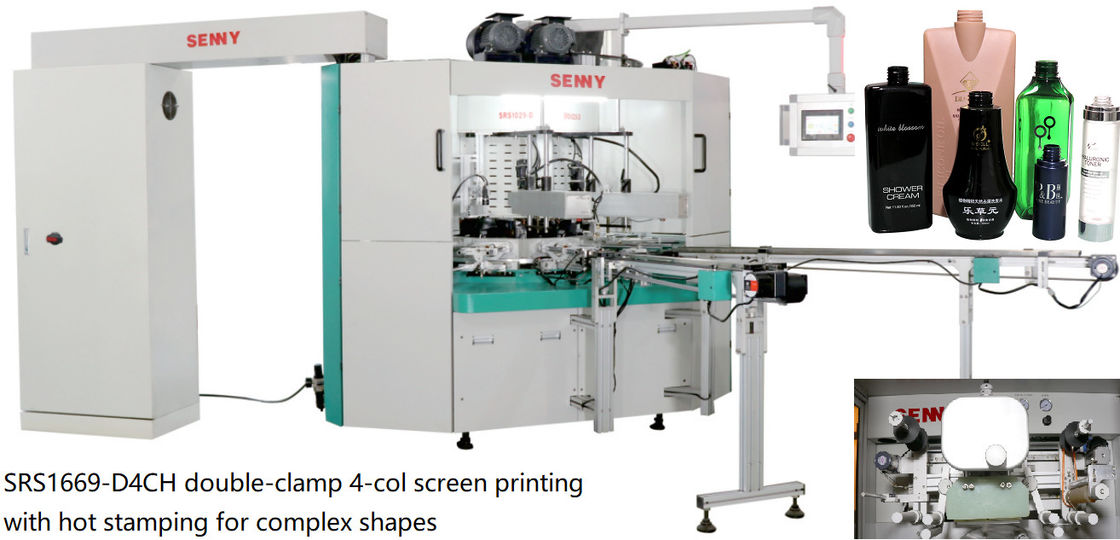

Automatic Hot Stamping Machine Heat Transfer And 4-Col Silk Screen Printer Servo Drive For Complicated Shape Of Bottles
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Application:
This machine design philosophy is to do all-purpose screen printing and hot stamping, it can do partial or 360degree screen printing or hot stamping for conical, oval, square, more irregular products etc
Features:
1. Less tooling, easy operation, low maintenance and high accuracy. High colour to colour register accuracy.
2. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable and safe at high speed.
3. According to the characteristics of products , this machine can be equipped with kinds of functions such
Flaming treament device for PP/PE material
UV curling device
