380V 45pcs/Min Automatic Hot Stamping Machine For Plastic Jars
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1669-DR5CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 6 Station |
|---|---|---|---|
| Printing Color: | 5 Col Screen Printing+1 Col Hot Stamping | Product Shape: | Round Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Highlight: | 380V automatic hot stamping machine,45pcs/min automatic hot stamping machine,45pcs/min plastic stamping machine |
||
Product Description

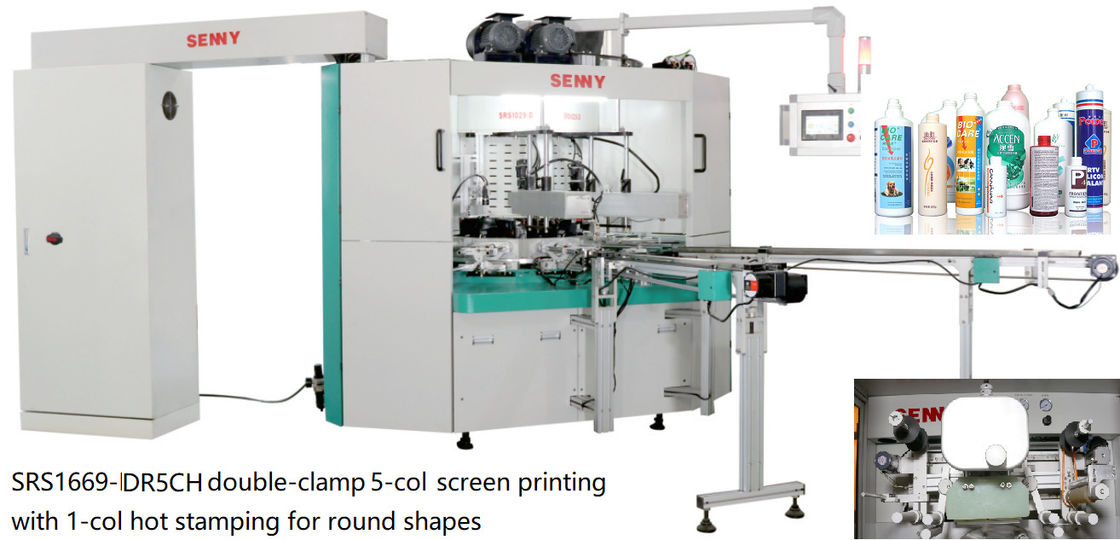

Automatic Hot Stamping Machine With 5-Color Screen Printing Machine For Acrylic Jars And Plastic Jars Tubes Caps
Application:
This machine design philosophy is to do all-purpose screen printing and hot stamping, it can do partial or 360degree screen printing or hot stamping for round lotion bottles, cups, caps, cream jars.
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Product Features:
1. Less tooling, easy operation, low maintenance and high accuracy. Colour to colour register accuracy: +/- 0.1 mm.
2. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable and safe at high speed.
3. According to the characteristics of products , this machine can be equipped with kinds of functions such as:
Vertical or horizontal infeed and outfeed of article,
Orientation,
Antistatic device,
Flame pre-treatment,
Automatic pre- and main register,
No article no print,
Conventional UV or LED UV curing system, etc.
4. Optional integration of different processing i.e. hot stamping unit, labelling, heat transfer, and varnishing.
5. Screen heating for thermoplastic inks.
6. All components are from German, USA and Japan to ensure the machine quality and stability of printing.
7. We can customize machine according to the special products.
Flaming treament device for PP/PE material, and double-clamp fixation
UV curling device
