Servo Drive 2700pcs/Hour Automatic Hot Stamping Machine CE Certification
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1669-DR4CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10PCS /Month |
|
Detail Information |
|||
| Printing Color:: | 4 Col Screen Printing+1 Col Hot Stamping | Station: | 5 Stations |
|---|---|---|---|
| Printing Durability: | High Durability | Condition: | New |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 2700pcs/Hour Hot Stamping Machine,Servo Drive Automatic Hot Stamping Machine,CE Certification Hot Stamping Machine |
||
Product Description

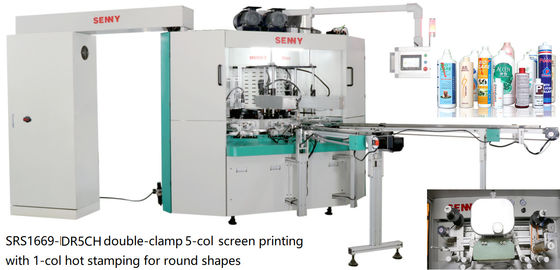

Servo Drive Auto Hot Stamping Machine With 4 Colors Screen Printing And Double-Clamp Fixation
Application:
The machine concept is designed for multi-purpose screen printing and hot stamping with partial or 360 degree screen printing or hot stamping of round lotion bottles and cups.
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Features:
The bottles are gripped into the fixture by a robotic arm so that the product stands on the conveyor belt. If the bottles cannot stand because they are too small, too tall or have an irregular shape at the bottom, bottle holders can be added to the conveyor belt.
Flaming treament device for PP/PE material
UV curling device
Customer's plant using our machine
Want to Know more details about this product
