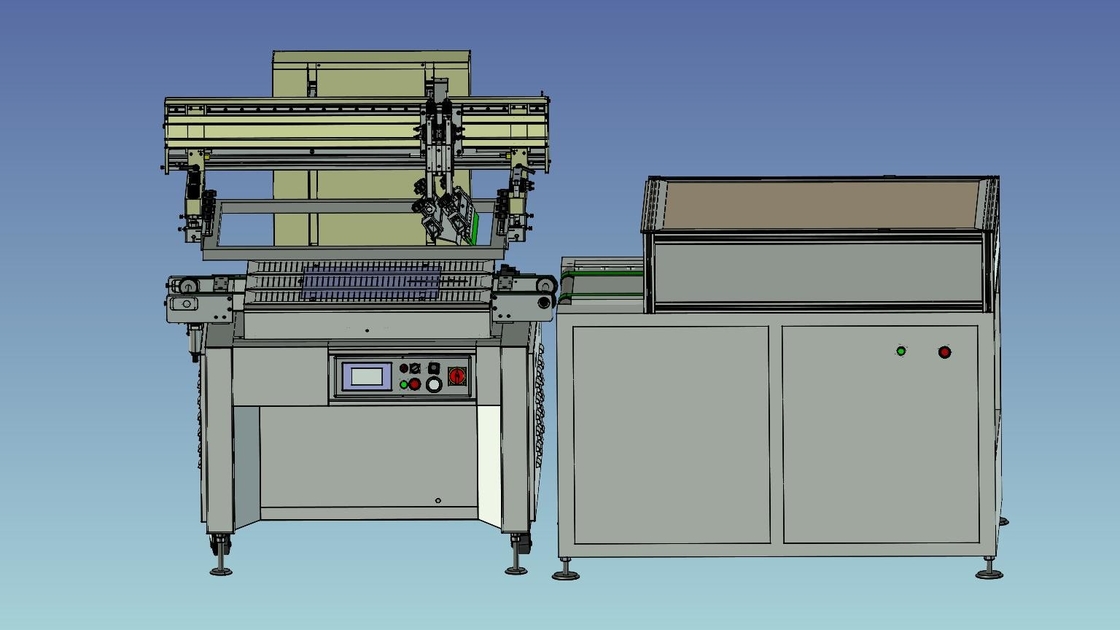

220V 50HZ Circuit Board Flat Printing Machine With Servo Lift
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SBF70100-D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1 Color | Plate Type: | Screen Printing Machine |
|---|---|---|---|
| Printing Durability: | High Durability | Station: | 1 Station |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 220V Flat Printing Machine,50HZ Flat Printing Machine,Servo Lift Flat Printing Machine |
||
Product Description
Circuit Board Screen Printing Machine, Printing Speed Is 900pph
Specification:
| Max.printing area | L900mm*W600mm |
| Max screen frame size | L1000mm*W700mm |
| Max thickness of article | 200mm |
| Positional accuracy | less than 0.02mm |
| Power supply | 220V 50HZ |
| Air pressure | 5-7 BAR 20L/min |
| Machine size | 1130*1360*1700mm |
| Machine weight | 380kg |
| Printing speed | 900 PPH (It will be different according to different articles) |
Application:
SBF70100-D is suitable for high-precision flat printing on various materials, especially for high-precision printing on circuit boards. Such as: metal, glass, ceramics, plastic, wood, leather and other materials. Widely used in: electronic and electrical appliances, advertising, packaging printing, sports equipment, toys, stationery gifts and other industries. Products such as a variety of glass, PCB, LCD, liquid green oil, cold light, film, keyboard, acrylic, cell phone panels, touch screen, light guide plate, diffusion board, nameplates, ceramics and other products of precision flat screen printing.
Machine features:
1. Vertical structure, PLC human-machine interface control, touch setting machine operation parameters.
2. Servo lifting, servo printing design, fast and stable, accurate positioning.
3. Lifting, sliding and printing head all adopt square guide rail to ensure printing precision.
4. multiple printing operation modes, adjustable speed, fast operation, stable and smooth, precise positioning.
5. precision guide rail printing head, printing head can be stretched back and forth, so that the printing ink layer is more uniform, easier to pick and place the workpiece
6. Printing stroke and printing thickness are set on the touch screen, and the table is self-locking with fine adjustment, easy to adjust.
7. Lifting and ultra-long stroke design, more convenient to pick and place the workpiece.
8. Inching, single cycle and automatic functions, easy to switch.
9. Various emergency safety devices. Ensure the safety of operators.
10. Starting mode: PLC or foot switch.
Remarks This machine is semi-automatic, it can be loaded and unloaded by manpower and placed on the shelf for natural drying. We can also design it according to customer's requirement to reduce manpower ---- Automatic loading, conveyor transfer, automatic registration, printing and automatic transfer to infrared curing machine for drying.
Our advantage service:
1. We own a strong R & D team, can ensure supplying innovative products, and provide customerized service according to your samples and request.
2. We have professional engineering team who can communicate in English freely. It is better for knowing customers' special demands and doing local installing and debugging.
3. We are manufacturer, can handle the bulk production independently and save more time and cost.
No matter what you need, our technical team can provide technical support and advice, to offer the perfect solution.
