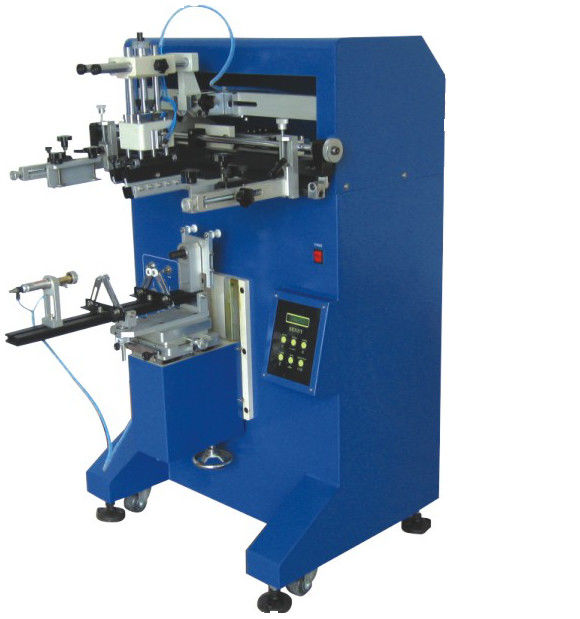

220V Multi Color Screen Printing Machine , 50W Semi Automatic Screen Printer
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SA400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Automatic Grade: | Semi-automatic |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| Color: | 1 To 12 Colors | ||
| Highlight: | 220V multi color screen printing machine,50W multi color screen printing machine,50W semi automatic screen printer |
||
Product Description
Flat, Round And Oval Container Semi Automatic Screen Printing Machine Can Print 1 To Multi Colors
Application Scope:
This machine SA400 is Mainly used for 1-color to multi color repeated screen printing of plastic containers, electrical appliances, decorative glass, toys, labels, casings, etc. such as washing products, cosmetics, pharmaceuticals, food and decorative articles
Technical Specifications:
According to printing area's size, we have below different machines:
| Mode | SA250 | SA400 | SA700 | SA1000 |
| Max. printing area | 200X250mm | 350X250mm | 600X250mm | 900X250mm |
| Max.screen frame size | 450X400mm | 550X400mm | 850X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ120mm | Φ200mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 800pcs/hr | up to 600pcs/hr |
Specific technical points for SA40
| Power supply voltage | 220V, 50HZ |
| Power consumption | 50W |
| Air supply pressure | 4-6 kg/cm2 |
| Machine weight | 150kg |
| Dimensions | L850 × B1080 × H1250 |
Technical Characteristics:
1. The microcomputer controls each function action, with high degree of automation and simple/convenient operation.
2. There are four digit automatic counter and reset function inside.
3. The machine has 9 speed options to meet different printing requirements.
4. It has three printing functions of flat, round and oval surface.
5. It is equipped with the functions of container inflation and pressure regulation.
6. The pressure of the scraper is adjustable, and the scraper part has the function of fine-tuning the direction and angle of X, y, Z and z-r.
7. The worktable and net frame can realize the function of X, y, Z and xy-r direction and angle adjustment.
