12 Stations 4000pcs/Hr Flat Screen Printing Machine 250x200mm Fully Automatic
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-12 |
|---|---|---|---|
| Plate Type: | Screen Printer With Hot Stamping | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 12 | Brand: | Senny Or OEM |
| Highlight: | 4000pcs/hr flat screen printing machine,250x200mm flat screen printing machine,4000pcs/hr fully automatic printing machine |
||
Product Description

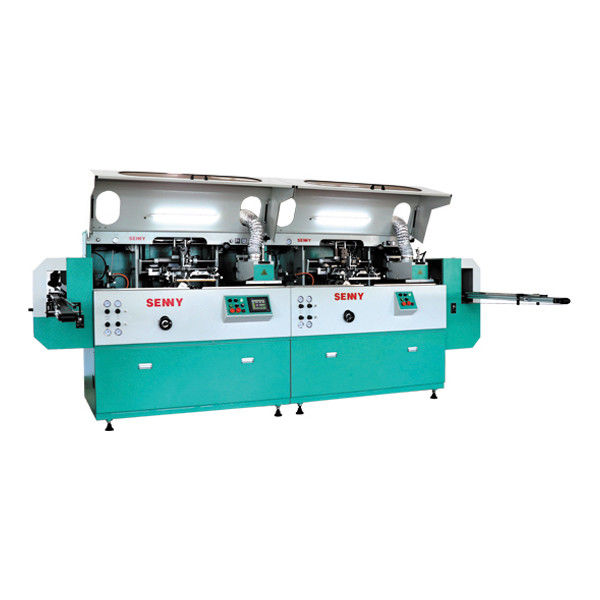

1 To 12 Colors Flat/Oval/Circular Screen Printing Machine With Hot-Stamping System Max Printing Area L250 X W200mm
This auto screen printing system SL1288(1-12 colour) can be designed for Cylindrical, Elliptical and Flat bottles and jars, another machine SL1266 is for Cylindrical only, you can choose freely according to your demands. Both can be configurated with Hot-stamping system, Labeling system, plasma system or UV-LED system.
Technical Specifications:
| Model | SL1288 |
| Max. printing diameter | Cylindrical/Elliptical/Flat |
| Elliptical container radius | R25 - R200mm |
| Width elliptical or flat container | 20 - 100mm |
| Cylindrical container diameter | Φ20 - Φ100mm |
| Container height | 50 - 280mm |
| Max. printing area | L250 x W200mm |
| Max. printing speed | Up to 5000pcs/hr |
SAFE EFFIENCY INNOVATIVE
* SL1288 Aervo-driven automatic machine for silk-screen printing of containers in plastic or glass materials, having a circular, elliptical, square or rectangular section with centered or off-center neck,and it is easy for changing different shapes on printing section.
* Shape changeover: 30minutes for each machine,from cylindrical format to elliptical or flat format.
* Linear unit structure combination: option of adding up to a total of eight in-line colors .
* The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.
* In-feeding parts includes:in-feeding belt and machine hand for side-selection.
* The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.
* Flame treatment for round,elliptical and rectangle container
* Device for pre-positioning
* Second time positioning for printing.
* Electronic lift for squeegee.
* UV curing by rotating round container driven by stepper motor.
* Electronic UV system :device for adjusting light freely(LED UV curing system can be as a replacement)
* Elliptical and square container side-selection for auxiliary machine section
* Output parts:Machine hand for container standing up and belt
* Conform to CE standard.
This machine is designed not only for cylindrical, but also for elliptical and flat bottles,it is widely used in chemical and food package.
