OEM 6000pcs/Hr 8 Colors Screen Printing Machine For Container
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1 To 8 Colors | Plate Type: | Screen Printing Machine |
|---|---|---|---|
| Printing Durability: | High Durability | Speed: | Up To 6000pcs/hr |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 6000pcs/Hr Screen Printing Machine,Container Screen Printing Machine,8 Colors Screen Printing Machine |
||
Product Description

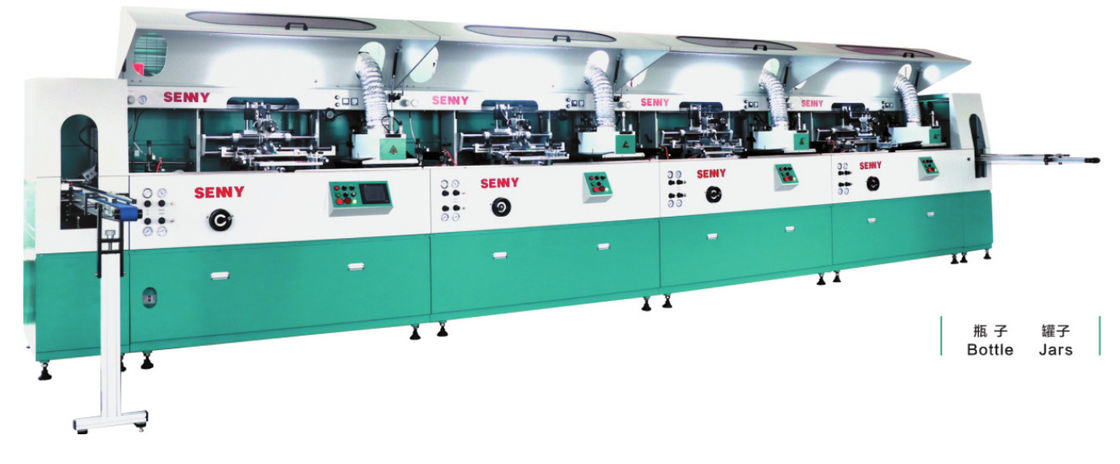

1-8 Colours Flat Screen Printing Machine Universal Usage On Cylindrical, Elliptical And Flat Containers
The machine is not only suitable for cylindrical bottles, but also for oval and flat bottles, which are widely used in chemical and food packaging.
SAFE EFFIENCY INNOVATIVE
* Pneumatic-driven automatic printing machine SL1688 for screen printing of containers of plastic or other materials with round, oval, square or rectangular cross-section, with centered or off-centered necks for easy change of different shapes in the printing section.
* Shape changeover: 30 minutes per machine, from cylindrical to oval or flat.
* Linear unit structure combinations: up to 8 inline colors are available as options.
* Machine is PLC and touch screen operated for easy operation with excellent alarm system.
* Infeed components include: infeed belt and robot hand for side selection.
* Side-selection mainframe is driven by servo motor for rotary dedusting and flame treatment of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees
* UV curing by rotation of round containers driven by stepper motors.
* Electronic UV system: device with freely adjustable light (alternative to LED UV curing systems).
* Auxiliary machine part with optional oval and square container sides
* Output parts: robot hand and belt for standing up containers
* CE compliant.
Technical Specifications:
| Max production speed | 6000pcs/hr |
| Min. Diameter of cylindrical container | 20mm |
| Max.Diameter of cylindrical container | 120mm |
| Min. Radius of elliptical container | 30mm |
| Max. Radius of elliptical container | 250mm |
| Max. Width or elliptical and flat container | 120mm |
| Min. Length of elliptical and flat container | 50mm |
| Max. Length of elliptical and flat container | 300mm |
| Max. printing width | 250mm |
| Max. printing length | 300mm |
Printing samples
Exihibition Show
