100pcs/Min UV Curing Multicolor Screen Printing Machine Automatic
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1488-2C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| UsageStation: | 1-12 Stations | Printed Colors: | 1-12 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 100pcs/min multicolor screen printing machine,UV Curing multicolor screen printing machine,Automatic multicolor screen printing machine |
||
Product Description
Up To 100pcs/Min Screen Printing/Labeling/Hot Stamping Head Interchange Function Multicolor Screen Printing Machine
Technical Specifications:
| Machine running speed | up to 100pcs/min(printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-130mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW X colors |
| Main machine size | Length 2900mm X Width 1200mm X Height 2000mm(Exclude loading and uploading convey belt) |
| Main machine weight | 1200kg |
| Auxilary machine size | Length 1190mm X Width 1200mm X Height 2000mm |
| Auxilary machine weight | 1000kg |
1. Machine features: the combination of nearly 30 years of experience in machine design. It combines the functions of feeding and discharging, surface treatment, screen printing and UV curing. Linear combination of modular structure, can realize up to 12 colors of integrated production line. Precise design and manufacture can realize electromechanical synchronization, high degree of automation, simple and convenient man-machine dialogue operation, inlet and outlet material and host safety protection is new, the whole machine is stable and fast, easy to transfer in different shapes of containers, easy to operate and save manpower. The technology is in the leading position in China.
2. Applicable industries: cosmetics, daily chemicals, food, medicine, health care products, baby products, automotive products, cleaning products, alcohol, glass glue, toys, sporting goods and so on.
3. Scope of application: The machine is suitable for single-color or multi-color screen printing on the surface of containers of various shapes, such as round, oval, square and complex shapes. Container materials include plastic, glass and metal. Containers include cans, bottles, cups, LIDS and hard tubes.
4, The main function of feeding belt speed conveyor function; robot vacuum selective feeding function; speed stepping motor drive round bottle surface treatment function; surface electrostatic dust removal function; surface flame treatment function; pre-alignment function; container adjustable pressure inflatable printing function; automatic screen printing function; motorized printing head lifting and lowering to facilitate the loading and unloading of the screen; high-intensity American UV lamp curing function (can be equipped with led-uv curing function); round container with single-color or color screen printing function; round containers with a variety of shapes of containers, including plastic and glass, metal. UV lamp curing function (led-uv curing function is optional); round container with UV speed motor rotation function; robot vacuum unloading function; unloading belt speed conveying function.
Optional congurated device:
1. Screen printing and labeling machine
a. screen printing and labeling head interchange function, such as 2 colors screen printing and labeling machine SL1488-2CT
b. screen printing and labeling function, such as 1 color screen printing and labeling machine SL1488-1CT
c. Labeling machine, such as two heads labeling machine SL1488-2T
2. Screen printing and hot stamping machine
a. screen printing and hot stamping interchange function, such as 2 colors screen printing and hot stamping machine SL1488-2CH
b. screen printing and hot stamping function, such as 1 color screen printing and hot stamping machine SL1488-1CH
c. Hot stamping machine, such as two heads hot stamping machine SL1488-2H

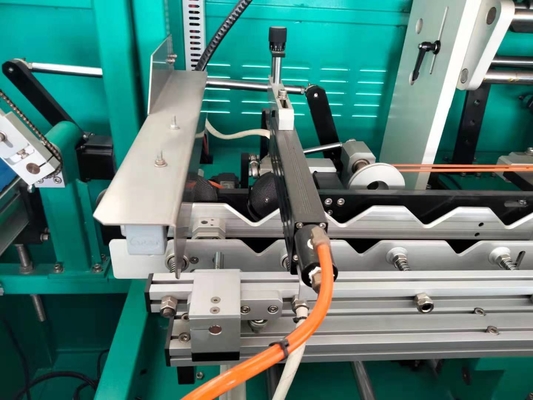

Machine under installation
UV Curing device
