6 Station 50Hz Rotary Screen Printing Equipment 45pcs/Min
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1669-R5CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 6 StationS |
|---|---|---|---|
| Printing Color: | 5 Cols Screen Printing + 1 Col Hot Stamping | Product Shape: | Round Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Highlight: | 45pcs/min rotary screen printing equipment,50Hz rotary screen printing equipment,45pcs/min 6 station screen printing machine |
||
Product Description
Rotary Type Multicolor Screen Printing Machine With Visual Location And Heat Foil Stamp Device
Application:

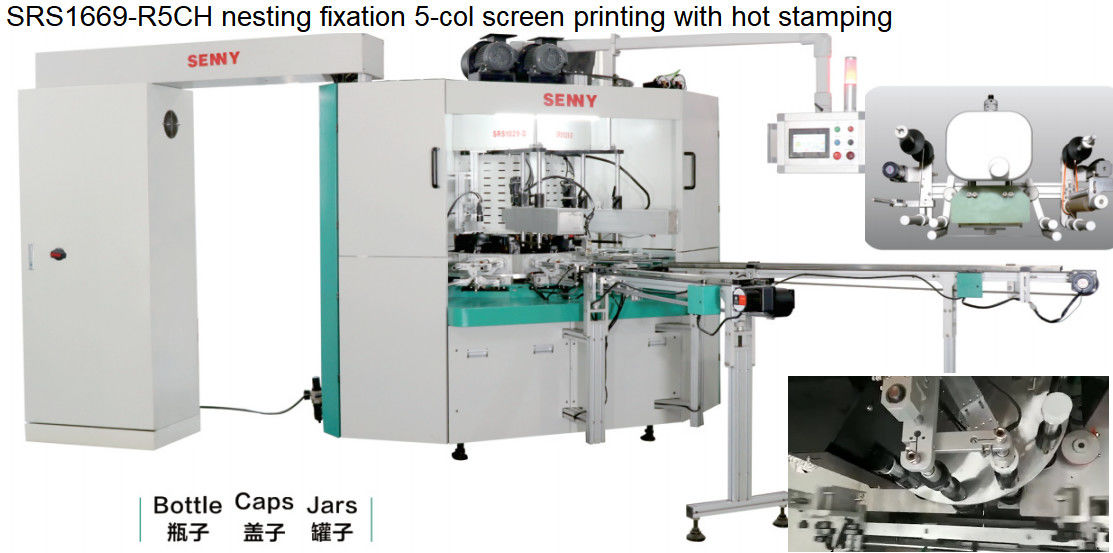

This machine is multifunctional rotary multicolor screen printing machine. It is mainly used to print the patterns and words on the round, oval and retangle bottles. The main difference compared with SRS1669-D5CH is different way of fixation, SRS1669-D5CH is double-clamp and SRS1669-R5CH is nesting, pls refer below:
Double clamp fixation:
Nesting fixation:
Features:
Servo-driven machine. No gear required.
Max 6 colors printing.
Tolerance control: within 0.2mm
Max speed: 45 pcs per min.
Technical specification
| Model | SRS1669-R5CH |
| Print color | 5-colors screen print + 1-color hot stamping |
| Product stations | 6 |
| Product diameter | irregular shape---20~100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air pressure | 6-7 bar |
| Power |
380v 50/60Hz |
