SGS 2700pcs/Hr Multicolor Screen Printing Machine For Round Bottle
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1669-R4CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 6 Stations |
|---|---|---|---|
| Printing Color: | 4 Col Screen Printing + 1 Col Hot Foil Stamp | Product Shape: | Irregular Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Highlight: | 2700pcs/hr multicolor screen printing machine,SGS multicolor screen printing machine,2700pcs/hr round bottle printing machine |
||
Product Description
Round, Cone, Triangle, Polygon Shapes, Exquisite Packing Patterns, Multicolor Screen Printing Machine With Hot Stamping
Application:

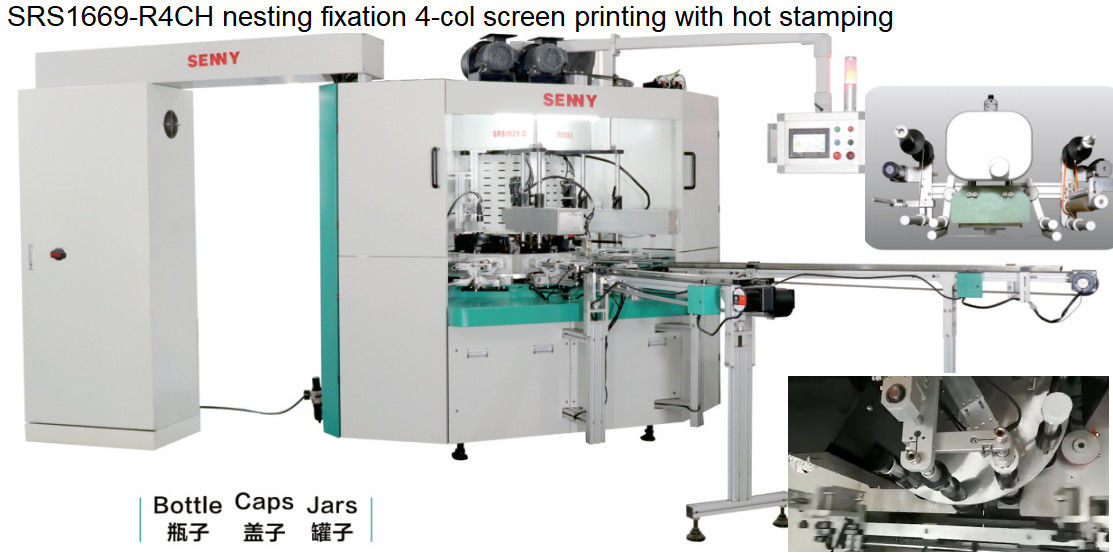

SRS1669-R4CH is designed for oval/square/irregular shape bottles, caps and jars' screen print and hot foil stamping, the printing speed can up to 45pcs per minute.
Features:
The machine is specially designed for round, oval and retangle bottles, cups, etc.
The machine can be widely used on cosmetic, and food industry.
The machine is working withe PLC system. It is efficiency and accurary.
Based on the design concept of universal automatic silk screen printing and hot stamping, the machine can carry out partial or 360 degree whole circle silk screen printing and hot stamping on the surface of rubber, plastic, glass container with irregular shapes such as round, cone, triangle, polygon (24 sides), and print exquisite packaging patterns of one color to six colors with full servo and high efficiency.
Technical specification
| Model | SRS1669-R4CH |
| Print color | 4-color screen print + 1-color hot stamping |
| Product stations | 6 |
| Product diameter | irregular shape---20~100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air pressure | 6-7 bar |
| Power | 380v 50/60Hz |
The main difference compared with SRS1669-D4CH is different way of fixation, SRS1669-D4CH is double-clamp and SRS1669-R4CH is nesting, pls refer below:
Double clamp fixation:
Nesting fixation:
