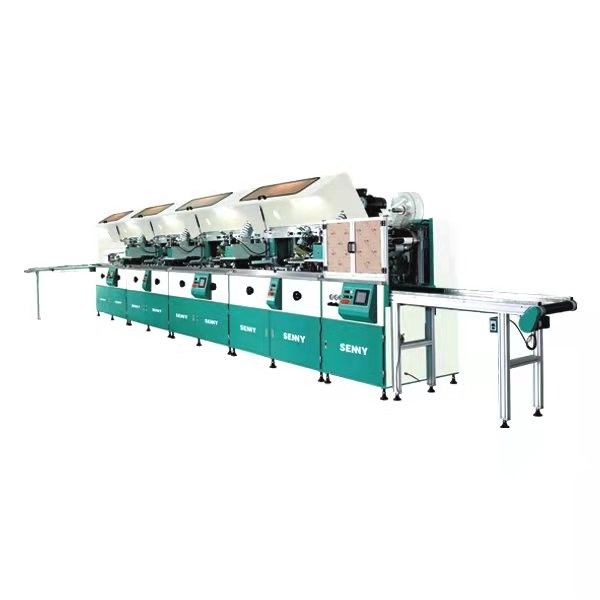

Linear Type Multicolor Auto Screen Printer For Glass Bottle
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| UsageStation: | 1-12 Stations | Printed Colors: | 1-12 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | Linear Type multicolor screen printing machine,Auto multicolor screen printing machine,Glass Bottle multicolor screen printing machine |
||
Product Description
Glass Bottle Silk Screen Printing Machine Multicolor Auto Screen Printer Linear Type Metal Screen Printing Equipment
Scope of application: This machine is suitable for single-color or multi-color screen printing on the surface of containers of various shapes such as round, oval, square and complex shapes. Container materials include plastic, glass and metal. Containers include jars, bottles, cups, lids and hard tubes.
Applicable industries: Cosmetics, daily chemicals, food, medicine, health care products, baby products, automotive products, cleaning products, alcohol, glass adhesive, toys, sporting goods and so on.
Machine features: The machine is a combination of nearly 30 years of experience in machine design. It combines the functions of feeding and discharging, surface treatment, screen printing and UV curing. The linear modular structure allows for an integrated production line of up to 12 colors. Precise design and manufacture can realize electromechanical synchronization, high degree of automation, simple and convenient man-machine dialogue operation, in and out of the material and the host safety protection is new, the whole machine is stable and fast, easy to transfer in different shapes of containers, easy to operate and save manpower. This technology is in the leading position in China.
Technical Specifications:
| Machine running speed | 0-85pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-280mm |
| Round bottle diameter | 20-100mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-100mm |
| Maximum printing area | length 250* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 4-wire 380V 50/60Hz |
| Rated power | 6KW |
Optional congurated device:
1. Screen printing and labeling machine
a. Screen printing and labeling head interchangeable function, such as 2-color screen printing and labeling machine SL1288-2CT
b. Screen printing and labeling functions, such as single color screen printing and labeling machine SL1288-1CT
c. Labeling machines, such as dual head labeling machine SL1288-2T
2. Screen printing and hot stamping machine
a. Screen printing and hot stamping interchangeable functions, such as two-color screen printing and hot stamping machine SL1288-2CH
b. Screen printing and hot stamping function, such as single color screen printing and hot stamping machine SL1288-1CH
c. Foil stamping machines, e.g. Double Head Foil Stamping Machine SL1288-2H
Printing samples
Customer Factory using our machine
