Multicolor Container Cylindrical Screen Printing Machine With UV IR Curing
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1466 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| UsageStation: | 1-12 Stations | Printed Colors: | 1-12 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | Container multicolor screen printing machine,Cylindrical multicolor screen printing machine,UV IR Curing multicolor screen printing machine |
||
Product Description
Cylindrical/Round Container Multicolor Screen Printing Machine With UV Curing/IR Curing
The machine is suitable for printing round plastic products, such as bottles, cans, rigid tubes and so on.
Developed specifically for round bottles, it is 50% faster to set up and easier to operate than conventional models.
The machine has a modular construction, with each module containing screen printing and UV curing functions, and linear connections for up to 8-color integrated lines.
The machine can be connected to a foil stamping or labeling module to become a multifunctional printing line with screen printing plus foil stamping or labeling; it can also be connected to a visual product inspection module after printing to replace manual inspection.
The infeed conveyor can be directly connected to the bottle making equipment, or connected to the automatic bottle trimmer to replace manual infeed; after printing, the outfeed can be connected to the bagging machine to save labor.

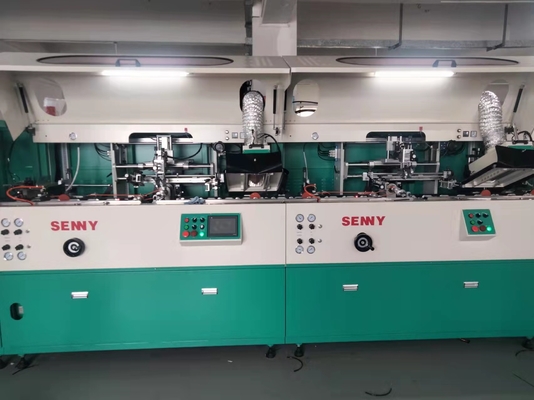

Fully automatic screen printing machine for cylindrical containers (1-12 colors): SL1466-1C (12C)
1. Machine features: 30 years of professional mechanical design and manufacturing, leading technology; precision mechatronics, high-speed, stable and reliable machine operation; linear combination of modular structure, up to 12-color integrated production line. Integration of loading, surface treatment, screen printing, UV curing and other functions; simple and convenient man-machine dialogue operation. Newly designed material safety protection and appearance make the machine simple and generous. Cylindrical container without bottle holder design and printing function, make the machine adjustment and transfer faster and more convenient.
2. Applicable industries: cosmetic, daily chemical, food, pharmaceutical, health products, baby products, automotive supplies, cleaning supplies , alcohol, glass glue, toy, sporting goods and so on.
3. Scope of application: This machine is suitable for single color or multi-color screen printing on the surface of cylindrical containers. Container materials include plastic, glass and metal, etc. Containers include cans, bottles, cups, caps and hard tubes, etc.

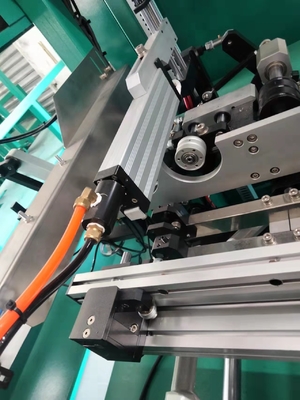

4. Main functions: Speed transmission feeding function; Vacuum directional feeding function of manipulator; Main engine speed regulating motor drive surface treatment function; Electrostatic dust removal function; Flame surface treatment function; Prepositioning function; Adjustable pressure inflatable printing function in the container; Automatic screen printing function; Electric printing head lifting function is convenient for screen loading and unloading; Screen electric lift easy to wipe the screen function; High strength American UV lamp curing function(LED-UV curing fuction can be optional); Speed regulating motor rotation function when cylindrical containers passing through the UV; Manipulator vacuum discharging function; Discharging speed control conveying function.
5. Main Components: importing famous brand components
Technical Specifications:
| Machine running speed | Up to 100pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
We have strong OEM and ODM capacity. We can manufacture and design according to your requirements. Just share your ideas, we will achieve mutual benefit.
We are looking forward to cooperate with the domestic and overseas distributors.You can build up you brand or use ours to expand your businees.
What is UV curing and IR curing?
UV curing - UV curing or drying
IR Curing - Infrared Curing or Drying
Ultimately, UV curing and IR curing are two unique applications that are ideal for reducing cure times. They are also both very energy efficient. Infrared ovens do not have special coating requirements like UV ovens. However, infrared ovens may not cure as fast as UV ovens.
