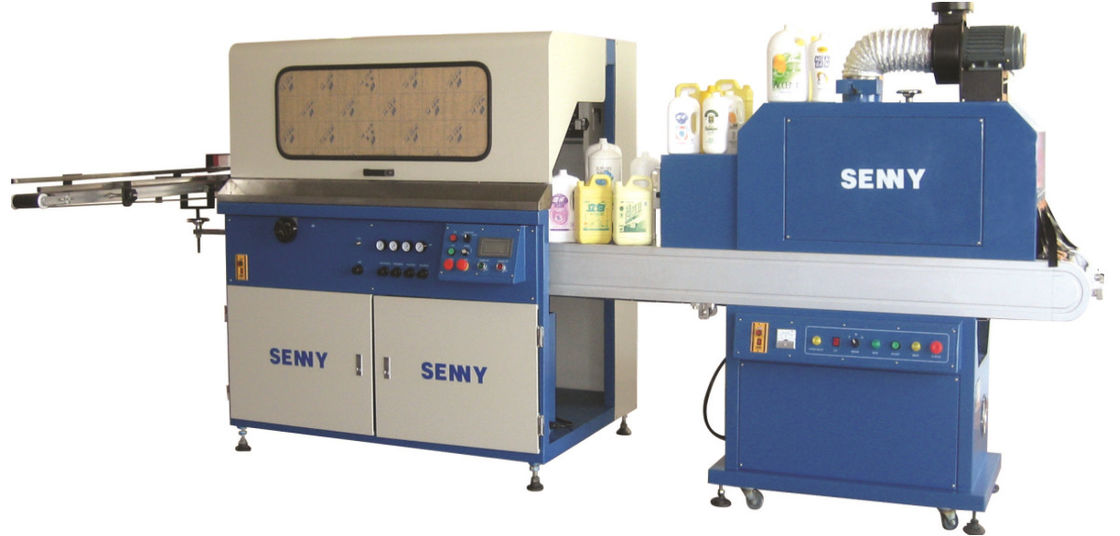

4200pcs/Hr Multicolor Screen Printing Machine , 1KW High Speed Digital Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL175&UV200F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Usage: | Flat Bottles | Printed Colors: | Single Or Multicolor |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Condition: | New | Warranty: | 1 Year |
| Highlight: | Multicolor Screen Printing Machine,1KW Multicolor Screen Printing Machine,4200pcs/Hr Multicolor Screen Printing Machine |
||
Product Description
High Speed Large Bottle'S Multicolor Screen Printing Machine For Plastic Or Glass Materials
Technical Specification:
SL175
| Max. printing area | 200×250mm |
| Max. screen frame size | 550×350mm |
| Min. square bottle radius | R25mm |
| Max. square bottle radius | R250mm |
| Min. bottle height | 60mm |
| Max. bottle height | 380mm |
| Max. square bottle height | 130mm |
| Max. printing speed | 4200pcs/hr |
| Power voltage | 220V 50Hz |
| Power consumption | 1KW |
| Air pressure | 4-6 kg/cm2 |
| Machine weight | 800KG |
| Dimensions | L2000×B2100×H1700mm |
UV200F
| Power voltage | 380V 50Hz |
| Power consumption | 4KW |
| Air pressure | 4-6 kg/cm2 |
| Machine weight | 300KG |
| Dimension | L2100×B660×H1700mm |
Applications:
It is mainly used for single to multi-color repeat screen printing on flat plastic and glass containers such as widened and elongated detergents, cosmetics, pharmaceuticals, foodstuffs and decorative items.
Features:
1. Adopts Japan Panasonic PLC programmable controller and easy-to-use touch screen, which makes the machine operation easy and stable.
2. Machine speed can be adjusted according to printing needs to meet different printing requirements.
3. The feeding conveyor of the machine adopts anti-abrasion belt, which can protect the surface of bottles from abrasion.
4. The flame surface treatment has automatic continuous flame spraying function, which can meet different printing speeds, and is equipped with safety anti-tempering device.
5. The drive roller adopts split independent standard roller, which is easy and quick to repair and replace, and greatly saves the maintenance cost.
6. Equipped with container inflation and pressure adjustment function to ensure fine bottle thickness printing quality.
7. Squeegee pressure is adjustable, and the squeegee part has the function of X, y, Z, z-r direction and angle micro-adjustment.
8. The machine has the function of no bottle no printing, which can meet the customer's high-speed printing requirements.
9. Independent UV curing oven is easy to detect the waste before curing and reduce the waste rate.
Printing samples
