1800pcs/Hr 6bar Multicolor Screen Printing Machine For Round Bottle
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1249-D5C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Station: | 5 Stations | Printed Colors: | 5 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Round Bottle Multicolor Screen Printing Machine,Multicolor Screen Printing Machine,1800pcs/Hr Multicolor Screen Printing Machine |
||
Product Description

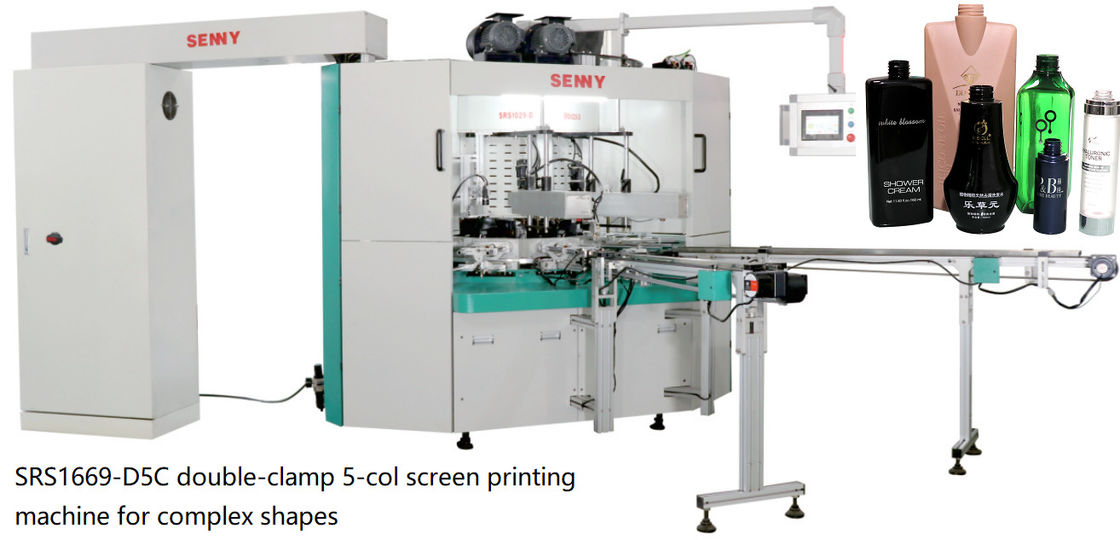

Irregular Shape Multicolor Screen Printing Machine 5 Colors Complicated-Shape Bottles, Caps, Jars Printer Machinery
Can this machine do screen printing and hot stamping together? 1 station or multiple stations?
Application:
This machine is a multifunctional rotary multi-color screen printing machine, which can be equipped with hot stamping device. It is mainly used for printing patterns and characters on bottles, cans and lids with complicated shapes, such as oval/square/conical and some irregular shapes. It is characterized by simple operation, accurate positioning, high degree of automation and fast printing speed.
Technical Specifications
| Model | SRS1249-D5C |
| Printing stations | 5 (5 printing colors) |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Features:
1. Innovative transmission device makes it very stable when passing through bottles, easy to change between different types of bottles and easy to operate.
2. The machine can print 5 colors or more, accurate color registration between colors, stable and reliable performance.
3. It adopts imported PLC and touch screen monitor such as OMRON, PANASONIC, DELTA, etc., and is equipped with all kinds of monitoring system, which ensures high speed and stable operation of the machine.
4. According to the product characteristics, the machine can be equipped with automatic loading and unloading, positioning, flame treatment, dust removal, automatic color registration, no bottle without printing, UV curing system and other functions.
5. The main parts are imported from the United States, Germany and Japan to ensure the quality of the machine and printing stability.
6. Chinese, English and Spanish languages are available.
7. Machine can be customized according to special products.
2. The machine can print 5 colors or more, accurate color registration between colors, stable and reliable performance.
3. It adopts imported PLC and touch screen monitor such as OMRON, PANASONIC, DELTA, etc., and is equipped with all kinds of monitoring system, which ensures high speed and stable operation of the machine.
4. According to the product characteristics, the machine can be equipped with automatic loading and unloading, positioning, flame treatment, dust removal, automatic color registration, no bottle without printing, UV curing system and other functions.
5. The main parts are imported from the United States, Germany and Japan to ensure the quality of the machine and printing stability.
6. Chinese, English and Spanish languages are available.
7. Machine can be customized according to special products.
Printing samples
