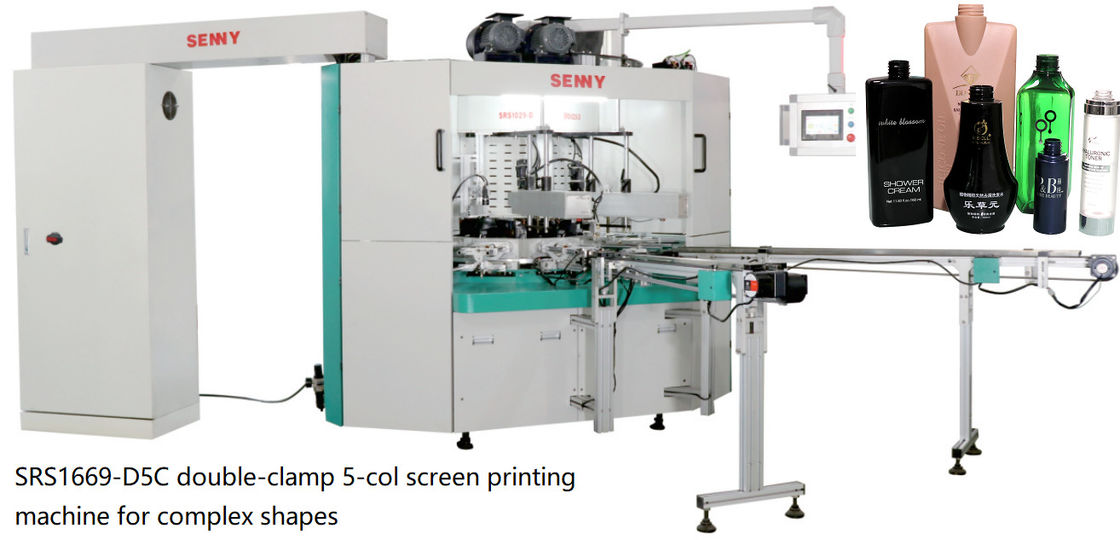

SGS Plastic Bottle Printing Machine , 20pcs/Min Rotary Screen Printing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1669-DR6C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Station: | 6 Stations | Printed Colors: | 6 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 20pcs/Min Plastic Bottle Printing Machine,SGS Plastic Bottle Printing Machine,Rotary Screen Plastic Bottle Printing Machine |
||
Product Description
Automatic Hot Stamping Machine Heat Transfer And 4-Col Silk Screen Printer Servo Drive For Complicated Shape Of Bottles
Technical Specifications (How many colors can be printed using this servo drive rotary screen printing machine)
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Application:
This machine is a multifunctional rotary multi-color screen printing machine. It is mainly used for printing patterns and texts on cylindrical plastic bottle caps, cylindrical glass tubes, cylindrical wine bottle caps, tube products, lighters, rubber tubes, polywood, lipsticks, flat surfaces and so on. It is characterized by simple operation, accurate positioning, high degree of automation and fast printing speed.
Features:
1. Few tools, simple operation, low maintenance cost and high accuracy. High precision of color-to-color register.
2. Controlled by PLC and touch screen, equipped with various monitoring systems to ensure the stability and safety of the machine when running at high speed.
3. According to the characteristics of the products, the machine can be equipped with various functions, such as
Vertical or horizontal feeding and discharging,
Orientation,
Anti-static device
Flame pre-treatment,
Automatic pre-register and main register,
No item no print,
Conventional UV or LED UV curing systems, etc.
Option to integrate different finishing processes such as hot stamping devices, labeling, heat transfer and varnishing.
Screen heating for thermoplastic inks.
All components come from Germany, USA and Japan to ensure machine quality and print stability.
We can customize the machine for special products.
UV curling device
Printing samples
