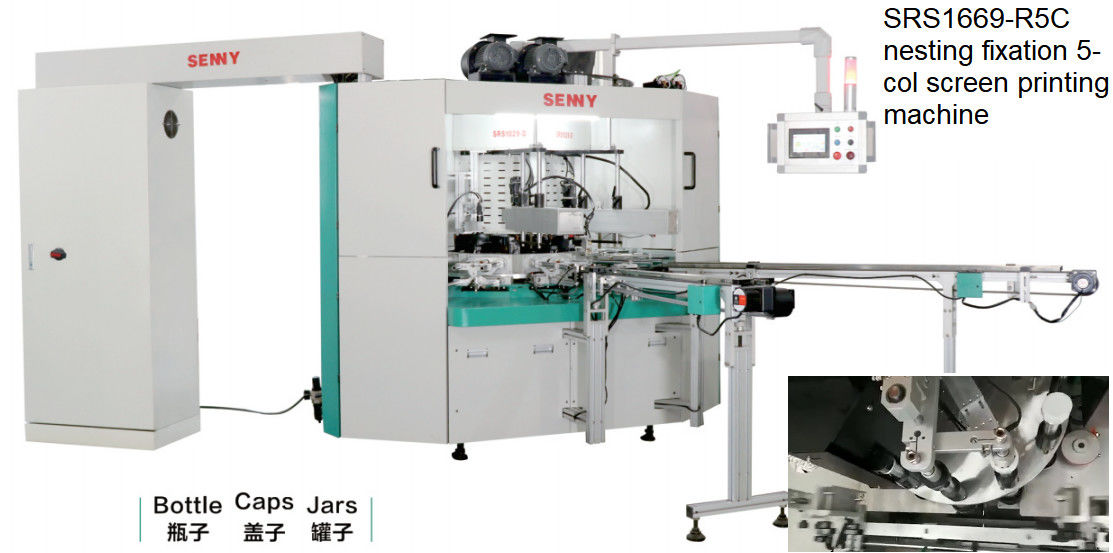

380V 60HZ 4 Color Automatic Bottle Screen Printing Machine Servo Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1249-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Station: | 4 Stations | Printed Colors: | 4 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 380V Screen Printing Machine,60HZ Screen Printing Machine,4 Color Screen Printing Machine |
||
Product Description
Servo Control 4 Color Screen Printing Machine multicolor screen printer 380V 60HZ
This machine series is designed to perform all-round screen printing or hot stamping.
The machine can screen print conical, oval, square and other irregular products partially or 360 degrees.
- Widely used for printing different shapes of household, medicine, food packaging containers, toys and tools.
- The machine adopts PLC system and advanced touch screen for intelligent operation.
- The whole machine adopts advanced motor and pneumatic components to ensure stepless speed change, automatic position matching, automatic feeding and no bottle no printing.
- It can print oval, cylindrical and irregular shaped bottles, such as plastic bottles, glass bottles, metal bottles and so on.
Features of machine:
- 1. Automatic loading system
- 2. Automatic flame treatment and UV curing system
- 3. Infinitely variable speed control system
- 4. Non-printing without bottles
- 5. Automatic pre contraposition system
Application:
This machine is multifunctional rotary multicolor screen printing machine. It is mainly used to print the patterns and words on the cylindrical bottles, caps and jars. The main difference compared with SRS1249-D is different way of fixation, SRS1249-D is double-clamp and SRS1249-R is nesting, pls refer below:
Double clamp fixation:

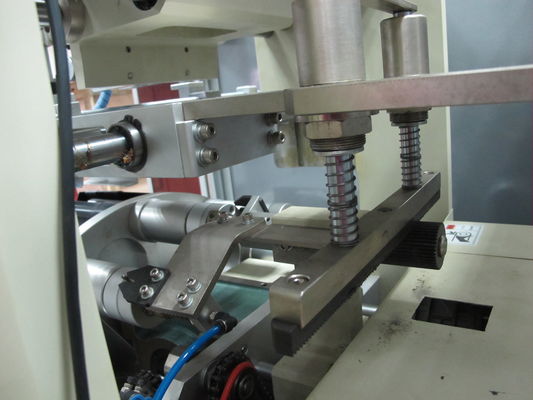

Nesting fixation:
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Want to Know more details about this product
