600*250mm 2000pcs/Hr Multicolor Screen Printing Machine For Cylindrical Bucket
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL268 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Printed Colors: | 1 To 12 |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 2000pcs/Hr Multicolor Screen Printing Machine,Multicolor Screen Printing Machine,Cylindrical Bucket Multicolor Screen Printing Machine |
||
Product Description
Multicolor Screen Printing Machine For Cylindrical Bucket With Max Container Diameter 220mm And Height 400mm

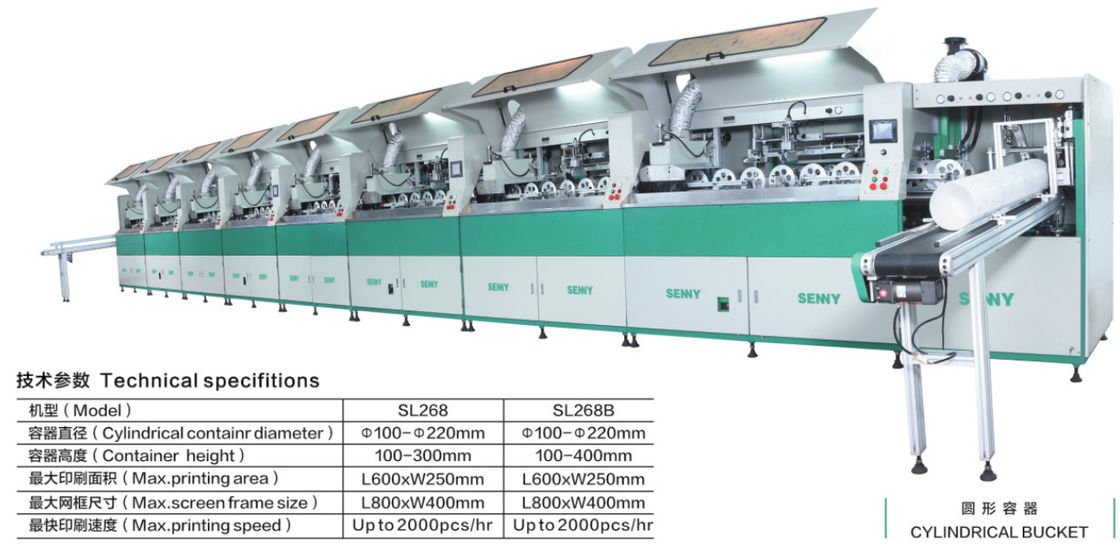

Technical Specifications:
We designed 2 different machines SL268 and SL268B according to cylindrical container's height:
| Model | SL268 | SL268B |
| Cylindrical container diameter | Φ100 - Φ220mm | Φ100 - Φ220mm |
| Container height | 100 - 300mm | 100 - 400mm |
| Max. printing area | L600 X W250mm | L600 X W250mm |
| Max. screen frame size | L800 X W400mm | L800 X W400mm |
| Max. printing speed | Up to 2000pcs/hr |
Up to 2000pcs/hr |
Application:
The machine is designed for cylindrical containers, the material can be glass, plastic or metal. It is widely used in chemical and food packaging.
Features:
1. Innovative transmission system is very stable when passing bottles, easy to change between different types of bottles and easy to operate.
2. The machine can print up to 12 colors, each module machine is driven independently and synchronously, accurate color registration between colors, stable and reliable performance.
3. Adopting PLC control and touch screen display, together with all kinds of monitoring system, to ensure high speed and stable operation of the machine.
4. According to the product characteristics, can be equipped with automatic loading and unloading, positioning, flame treatment, dust removal, automatic color registration, non-printing without bottels, UV curing system, etc.
5. All the parts are from Germany, USA and Japan to ensure the quality and printing stability.
6. Machine can be customized according to special products.

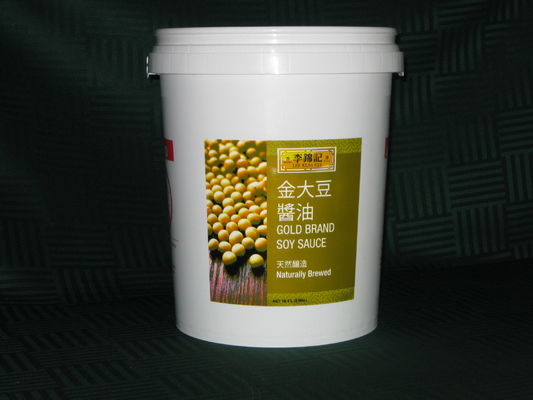

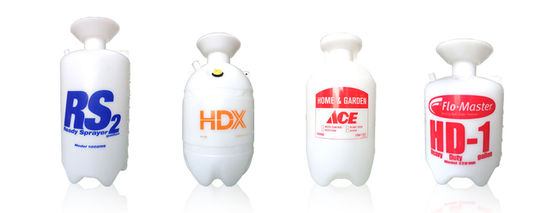

Printing samples
Customer's production line with our printing machine:
