Flat Plastic Bottle Hot Stamping Machine Foil Heat Printing Equipment
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SHR618 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 50PCS /Month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Machine Type: | Hot Stamping Machine |
|---|---|---|---|
| Function: | Hot Stamping | Warranty: | 1 Year |
| Product Name: | Automatic Hot Foil Stamping Machine | Condition: | New |
| Highlight: | Flat Plastic Bottle Hot Stamping Machine,Automatic Foil Hot Stamping Machine |
||
Product Description

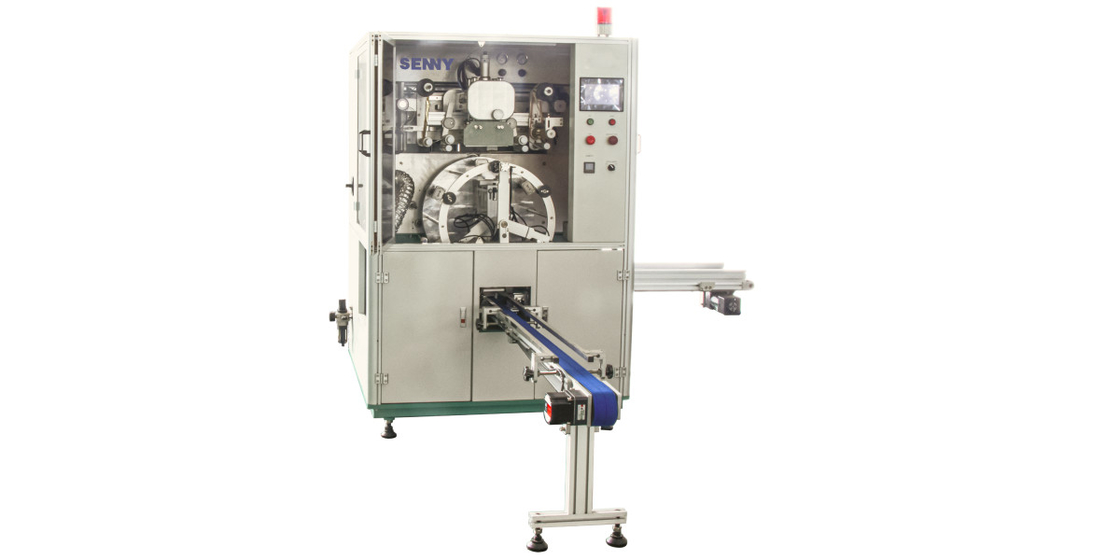

Flat Plastic Bottle Hot Stamping Machine Foil Heat Printing Equipment
SHR618 is suitable for hot stamping round, oval, square, multiple shapes of bottles, caps, jars, tube etc. It is widely used in cosmetic industry, liquor industry.
- Can configurated with automatic unscrambler feeding
- It’s equipped with PLC and Touch screen control panel
- The machine adopts an integrated turntable design with complete functions, easy to operate.
- The machine adopts well-known brand electrical components, PLC control system and easy-to-use touch screen, with reliable performance.
Technical Specifications:
| Specification/Model | SHR618 |
| Stamping speed | Up to 50pcs/min |
| Diameter of round bottle | 20–100mm |
| Height of bottle | 50–200mm |
| Stamping length | 200mm |
| Stamping height | 100m |
Machine Features
Automatic Feeding System
The machine can be installed as customer needs, equipped with a variety of automatic feeding system, such as vibration plate and rotary feeder etc.
Surface Treatment System
This machine can be installed the surface treatment system separately according to the needs of customers, which can effectively solve the surface treatment of various plastic products, easy to operate, and meet different needs. Before printing plastic products, surface treatment is generally required to destroy the molecular structure of the surface and enhance the adhesion of the printed pattern; there are two surface treatment processes, one is flame treatment and the other is corona treatment.
No Part No Print System and Adjustable Printing Head System
If the machine finds no product on the transfer, the printing system won’t work when the jig comes to the printing position.
According to the different products, you can adjust the printing head stroke and the initial action angle of printing, so as to achieve the best printing effect.
UV Curing system / LED Curing system
Customers can choose different curing systems according to their own needs.
UV curing with mature technology, low lamp replacement cost and low maintenance cost.
Compared with traditional high-pressure mercury, LED curing has the characteristics of soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupied, and uniform light spot, but it has the disadvantage of high maintenance and replacement cost.
