Bottles CNC Multi Color Screen Printing Machine For Jars Caps In Various Shapes
Product Details:
| Place of Origin: | China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1669-DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Package |
| Delivery Time: | One Month |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 15PCS Per Year |
|
Detail Information |
|||
| Color Numbers: | 1-6 Colors | Control System: | Servo-Driven |
|---|---|---|---|
| Automatic Grade: | Automatic | Condition: | New |
| Printing Speed: | 45-70Pcs/min | Warranty: | 1 Year |
| Highlight: | CNC Multi Color Screen Printing Machine,45Pcs/min Multi Color Screen Printing Machine,360 Degree Multi Color Screen Printing Machine |
||
Product Description

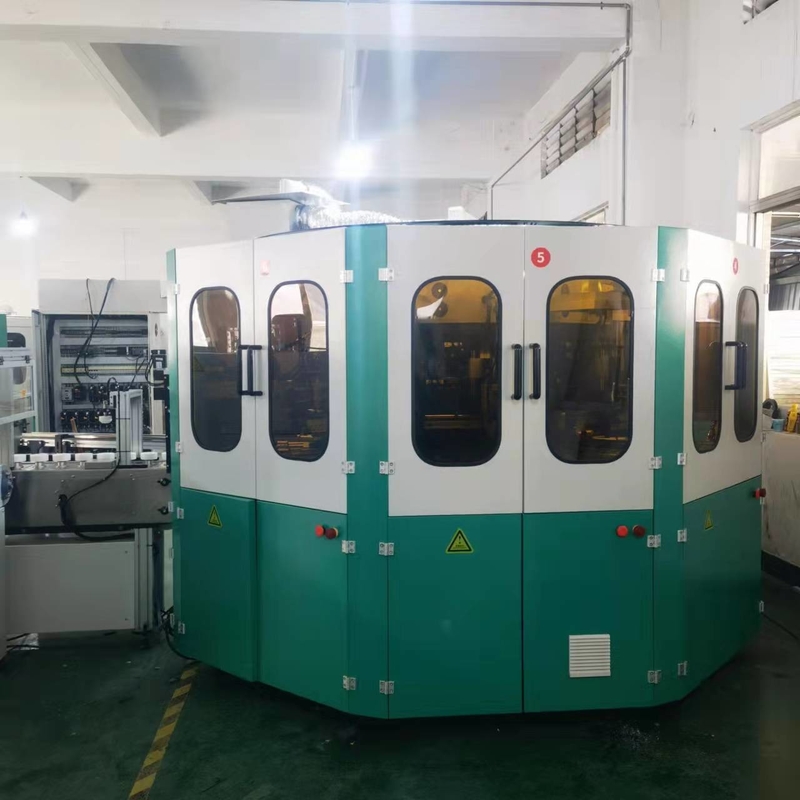

CNC Multicolor Screen Printing Machine For Bottles, Jars, Caps In Various Shapes
The fully automatic screen printer driven by CNC servo motor can print 360 degree on plastic, glass, metal bottles, jars, caps of various shapes (such as round, oval, triangle, square, pentagon, etc.) with different colors of UV inks.
The bottle is rotated to different workstations in one fixture to complete the functions of feeding, registration, surface treatment, multi-color printing, UV curing and discharging. The printing accuracy is high, the distance from printing pattern to bottom of the bottle is small, and it is not easy to damage the surface of the product.
UV curing can partially or fully use LED-UV curing system to save energy.
It is possible to cancel a screen printing and UV curing station, install a hot stamping system, and realize the simultaneous completion of screen printing and hot stamping functions.
The last screen printing and UV curing station can be cancelled, a visual inspection system for finished products can be installed, and the qualified and unqualified products can be separated after discharging.
The machine is equipped with a remote management function, which can remotely know or solve machine failures and technical problems for customers as long as the network is connected anywhere.
Parameters
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing Stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Complex shapes(20-100mm) | Cylindrical(20-100mm) | ||||||
| Printing Speed | Up to 45pcs/min | |||||||
| Max Printing Area | L250mm X W160mm | |||||||
| Product Height | 250mm | |||||||
| Air Pressure | 6-7 bar | |||||||
| Power | 380v 50/60HZ | |||||||
