Self Adhesive 2kw 150pcs/Min Automatic Labeling Machine Double Side
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SY500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 100pcs /month |
|
Detail Information |
|||
| Plate Type: | Labeling Stickers | Product Shape: | Square And Polygonal |
|---|---|---|---|
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Weight: | 370kg | Power Voltage: | 220V 50HZ |
| Highlight: | 150pcs/min automatic labeling machine,150pcs/min double side labeling machine,2kw automatic labeling machine |
||
Product Description

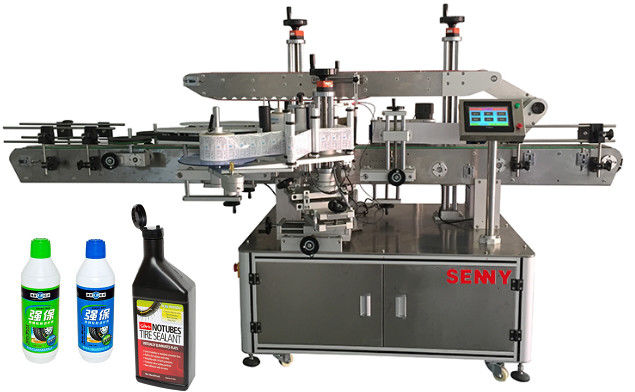

Automatic Multi-Functional Labeling Machine Single Side, Double Sides And Circumferential Labeling
Applicable label: self adhesive label, self adhesive film, electronic supervision code, bar code, etc;
Applicable products: articles requiring labeling on side plane, side surface, large arc surface and circumference surface;
Application Industry: widely used in printing, cosmetics, food, toys, daily chemicals, electronics, plastics, medicine and other industries;
Application examples: shampoo flat bottle labeling, lubricating oil flat bottle labeling, mineral water square bottle labeling, wine labeling, etc.
Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
| Model |
SY500 |
Labeling accuracy |
±1mm |
| Sticker length |
20mm～220mm |
Sticker turning out speed |
5～25m/min |
| Sticker width |
20mm～150mm |
Labeling speed |
30～150pcs/min |
| Product length |
20mm～250mm |
Conveying speed |
5～35m/min |
| Product width |
30mm～90mm |
Weight |
370kg |
| Product height |
60mm～280mm |
Power voltage |
220V 50HZ |
| Product diameter |
40mm～110 mm |
Power |
2KW |
| Sticker roll's external diameter |
Φ280mm |
Conveying oriention |
fm left to side |
| Sticker roll's inner diameter |
Φ76mm |
Machine dimensions |
3000*1400*1600mm |
SY500 Working Process:
Product feeding --- transportation --- Guide product to a right direction --- top pressing transportation --- detection --- labeling --- pressing labels --- secondary pressing labeling (some products) -- product output.
