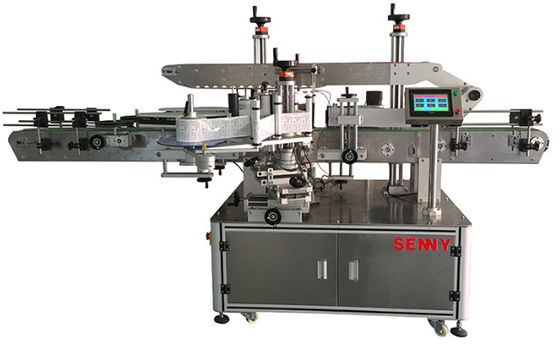

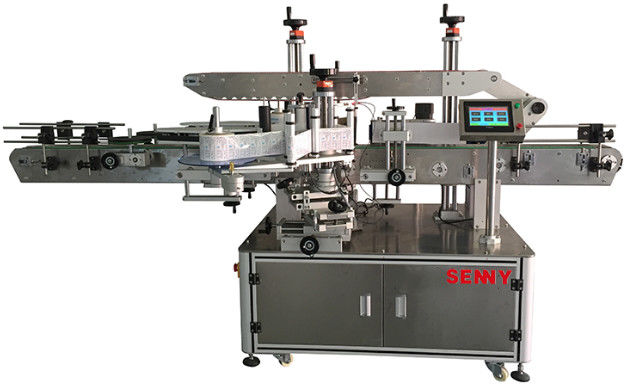

2000W 50pcs/Min Automatic Labeling Machine For Square Bottle
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SY500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 100pcs /month |
|
Detail Information |
|||
| Plate Type: | Labeling Stickers | Product Shape: | Square And Polygonal |
|---|---|---|---|
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Weight: | 370kg | Power Voltage: | 220V 50HZ |
| Highlight: | 50pcs/min automatic labeling machine,2000W automatic labeling machine,50pcs/min square bottle labeling machine |
||
Product Description
Automatic Multi-Functional Labeling Machine For Labeling Side Stickers, Elliptical/Square/Round Bottles
The device can realize the double-sided labeling function, and can meet the single / double side labeling of flat bottles and square bottles. It is widely used in cosmetics industry, daily chemical industry and other industries.
Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
| Model |
SY500 |
Labeling accuracy |
±1mm |
| Sticker length |
20mm～220mm |
Sticker turning out speed |
5～25m/min |
| Sticker width |
20mm～150mm |
Labeling speed |
30～150pcs/min |
| Product length |
20mm～250mm |
Conveying speed |
5～35m/min |
| Product width |
30mm～90mm |
Weight |
370kg |
| Product height |
60mm～280mm |
Power voltage |
220V 50HZ |
| Product diameter |
40mm～110 mm |
Power |
2KW |
| Sticker roll's external diameter |
Φ280mm |
Conveying oriention |
fm left to side |
| Sticker roll's inner diameter |
Φ76mm |
Machine dimensions |
3000*1400*1600mm |
SY500 Working Process:
Product feeding --- transportation --- Guide product to a right direction --- top pressing transportation --- detection --- labeling --- pressing labels --- secondary pressing labeling (some products) -- product output.
