50Hz Multicolor Screen Printing Machine , 45pcs/Min Rotary Screen Printer
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS829-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 2 Station |
|---|---|---|---|
| Printing Color: | 2 Cols Screen Printing | Product Shape: | Round Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Highlight: | 45pcs/min multicolor screen printing machine,50Hz multicolor screen printing machine,45pcs/min rotary screen printer |
||
Product Description

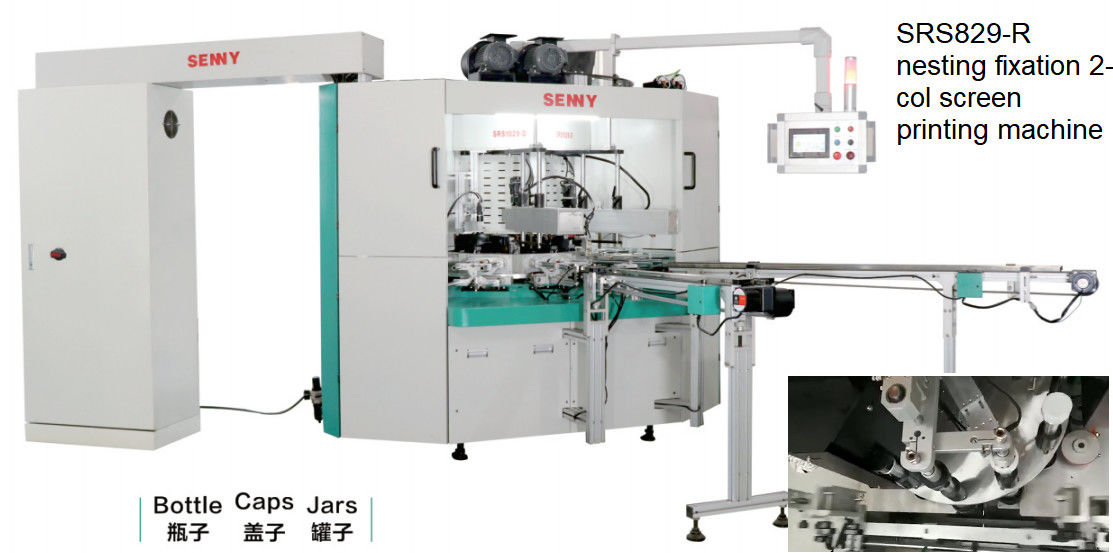

Nesting Fixation Rotary Multicolor Screen Printing Machine Screen Printer Parts For Round Containers Visual Location
Application:
This machine is multifunctional rotary multicolor screen printing machine. It is mainly used to print the patterns and words on the cylindrical bottles, caps and jars. The main difference compared with SRS1039-D is different way of fixation, SRS1039-D is double-clamp and SRS1039-R is nesting, pls refer below:
Double clamp fixation:

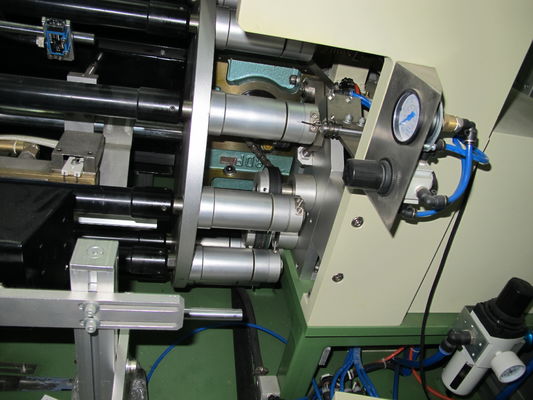

Nesting fixation:
Features:
Servo-driven machine. No gear required.
Max 6 colors printing.
Tolerance control: within 0.2mm
Max speed: 45 pcs per min.
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
