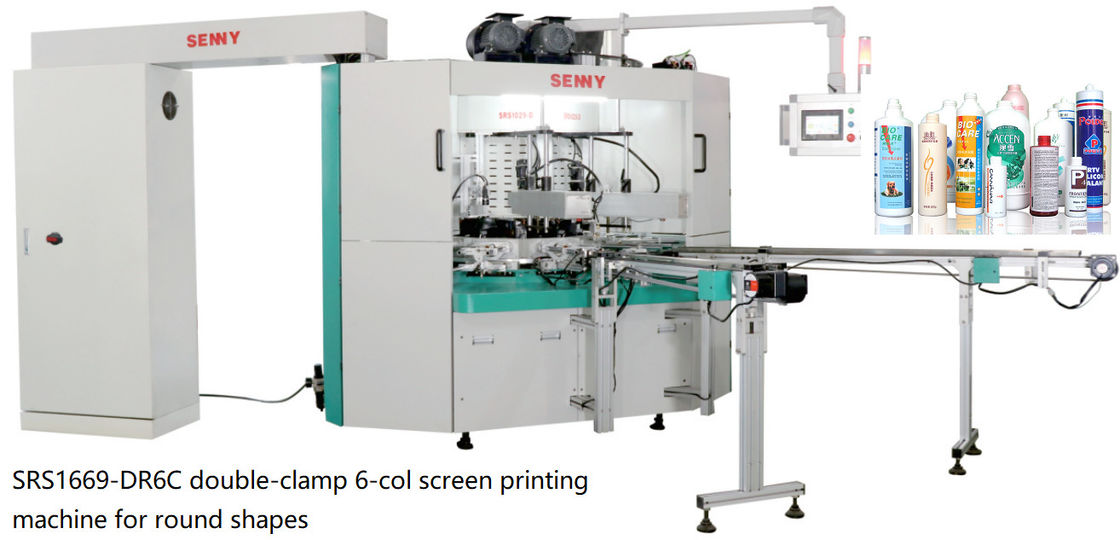

SGS Plastic Bottle Printing Machine , 20pcs/Min Rotary Screen Printing Equipment
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1669-DR6C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 6 Station |
|---|---|---|---|
| Printing Color: | 6 Cols Screen Printing | Product Shape: | Round Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Highlight: | 20pcs/min plastic bottle printing machine,SGS plastic bottle printing machine,20pcs/min rotary screen printing equipment |
||
Product Description
Automatic Hot Stamping Machine Heat Transfer And 4-Col Silk Screen Printer Servo Drive For Complicated Shape Of Bottles
Technical Specifications (How many colors can be printed using this servo drive rotary screen printing machine?)
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Application:
The machine is multifunctional rotary multicolor screen printing machine. It is mainly used to print the patterns and words of cylindrical plastic bottle cap, cylindrical glass tube, cylindrical wine bottle cap, tube product, lighter, rubber tube, polywood, lipstick, flat surface and so on. Featuring with easy operation, accuracy positioning, highly automation and fast in printing.
Features:
1. Less tooling, easy operation, low maintenance and high accuracy. High colour to colour register accuracy.
2. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable and safe at high speed.
3. According to the characteristics of products , this machine can be equipped with kinds of functions such as
Vertical or horizontal infeed and outfeed of article,
Orientation,
Antistatic device,
Flame pre-treatment,
Automatic pre- and main register,
No article no print,
Conventional UV or LED UV curing system, etc.
Optional integration of different processing i.e. hot stamping unit, labelling, heat transfer, and varnishing.
Screen heating for thermoplastic inks.
All components are from German, USA and Japan to ensure the machine quality and stability of printing.
We can customize machine according to the special products.
UV curling device
Printing samples
