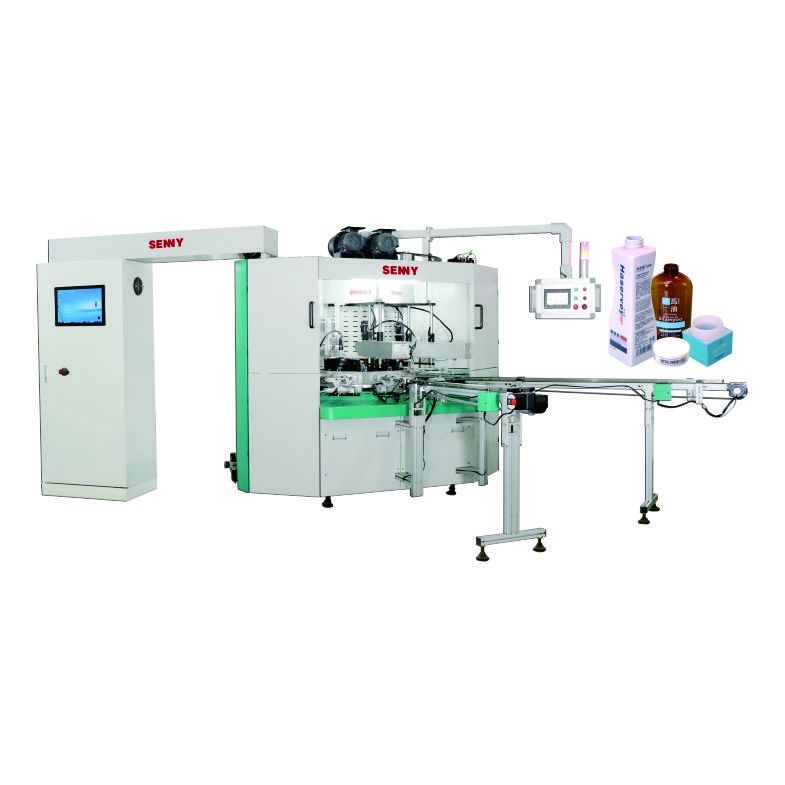

60Hz 3 Color Screen Printing Machine , 380V Automatic Silk Screen Machine
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1039-D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 3 Station |
|---|---|---|---|
| Printing Color: | 3 Colors | Product Shape: | Irregular Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Highlight: | 380V automatic silk screen machine,60Hz automatic silk screen machine,60Hz 3 color screen printing machine |
||
Product Description
Double Clamp Fixation Multicolor Screen Printing Machine With Intergrated Flame Treating And UV Curing System
Product Features:
1. SRS1039-D is designed for plastic round, elliptical and polygon containers, the printing colors can be designed from 1 to 3 as customer's requirements.
2. 360 degree screen printing.
3. All servo-drive for screen printing, can be designed with structure of two screen printing toolings and one hot stamping tooling, or with structure of one screen printing tooling and two hot stamping toolings, even structure of three screen printing toolings or structure of three hot stamping toolings.
4. Mechanical registration, color mark registration and visual registration function.
5. Electronic UV system and non-polar dimming function (LED-UV curing system is a option).
6. With touch screen display, it is easy to realize the man-to machine dialogue, and it also has complete warning system.
Technical Specifications
| Max. printing area | 250 X 160mm |
| Min. cylindrical-container diameter | Φ20mm |
| Max. cylindrical-container diameter | Φ100mm |
| Max. container height | Up to 45pcs/min |
| Air Presser | 6-7 bar |
| Power | 380V 50/60 Hz |
Optional Configuration
Machine under proceeding in factory
