360 degree Bottle CE UV Curing Machine Configurated 220V 40Amps
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | UV250RF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Automatic Grade: | Semi-automatic | Application Area: | Screen Printing Using UV Ink |
|---|---|---|---|
| Printing Durability: | High Durability | Condition: | New |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | CE UV Curing Machine,360 degree UV Curing Machine,40Amps UV Curing Machine |
||
Product Description
Bottle Peg UV Curing Machine Configurate With Semi-Automatic Screen Printing Machine, Make It Dry Fastly With UV Ink

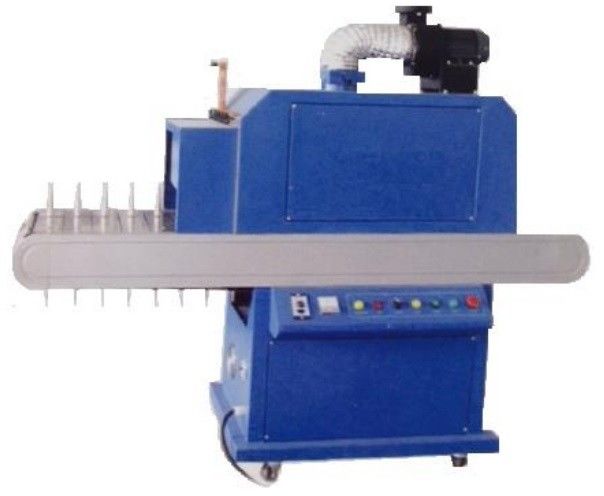

This UV dryer is suitable for curing round, oval and flat surfaces of screen printing and offset containers. The containers are loaded by hand onto hooks that pass through the UV tunnel. The containers rotate 360° under UV light. The conveyor speed is controlled by a variable speed motor. The UV tunnel can also be used to process small diameter containers.
Container Specifications
• Maximum diameter: 100 mm. (3.93”) • Maximum height: 200mm (7.87")
• Inside neck diameter: 10 mm. to 24 mm. (0.4-to 1")
Machine Specifications
• 2 to 25 seconds cure time depending on container shape and size
• Machine Dimensions 2150 mm X 660 mm X 1420 mm (7.1'X2.2'X4.7') L X W X H
• Machine Weight: 300 kg (660 lbs). (660 lbs.)
• Electrical 220V, single phase, 40 amps
• Lamp Specifications 12" arc length, 3.6 kW. 300 watts per inch, adjustable high, medium and low
• Machine Dimensions 2150 mm X 660 mm X 1420 mm (7.1'X2.2'X4.7') L X W X H
• Machine Weight: 300 kg (660 lbs). (660 lbs.)
• Electrical 220V, single phase, 40 amps
• Lamp Specifications 12" arc length, 3.6 kW. 300 watts per inch, adjustable high, medium and low
Our machine shipped to many countries oversea, such as Amercia, Korea, Malaysia, India, Pakistan, Germany, Dubai, England, Phillipine, Singapore, Vietnam, Brazil, Uzbeikstan and so on.
