200x250mm 6000pcs/Hr Automatic Screen Printing Equipment For Bottle
Product Details:
| Place of Origin: | China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL150&UV200F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS Per Month |
|
Detail Information |
|||
| Usage: | Flat Bottles | After-sales Service Provided: | Video Technical Support, Online Support |
|---|---|---|---|
| Plate Type: | Screen Printer | Warranty: | One Year |
| Automatic Grade: | Fully Automatic | ||
| Highlight: | 6000pcs/hr automatic screen printing equipment,200x250mm automatic screen printing equipment,6000pcs/hr bottle screen printing equipment |
||
Product Description

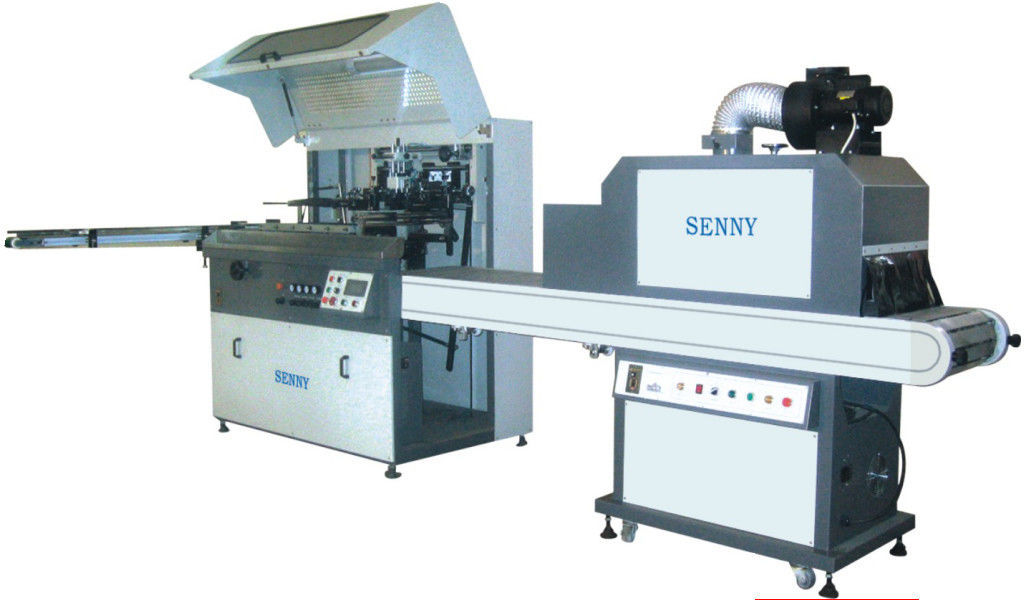

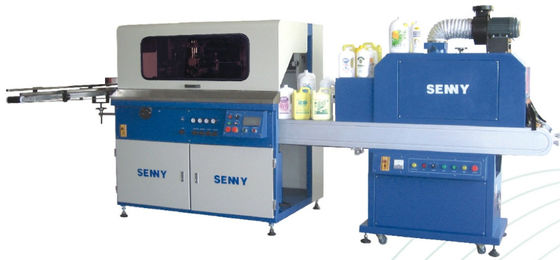

Screen Printing Machine With UV Curing Machine Automatic Screen Printing Line For Square Bottles
Applications:
It is mainly used for 1-color to multi-color repeated screen printing of flat plastic and glass containers such as washing products, cosmetics, drugs, food and decoration products
Features:
1.The PLC and easy to use touch screen are adopted in Japan, so the machine can be operated conveniently and stably.
2. The machine speed can be adjusted according to the printing needs to meet different printing requirements.
3. The feeding conveyor belt of the machine adopts anti abrasion belt, which can protect the bottle surface from abrasion.
4. The flame surface treatment is equipped with automatic and continuous flame spraying function to meet different printing speed, and equipped with safety anti tempering device.
5. Transmission cylinder adopts separate independent standard cylinder, maintenance and replacement is convenient and fast, and greatly saves maintenance costs.
6. It is equipped with container inflation and pressure adjustment function to ensure the fine printing quality of the bottle thickness.
7. The pressure of the scraper is adjustable, and the scraper part has the function of fine-tuning the direction and angle of X, y, Z and z-r.
8. The machine is equipped with the function of no-bottle-no-print, so as to meet the high-speed printing requirements of customers.
9. The independent UV curing oven is easy to detect the waste before curing and reduce the waste rate.
Technical Specification:
SL150
| Max. printing area | 200×250mm |
| Max. screen frame size | 550×350mm |
| Min. square bottle radius | R25mm |
| Max. square bottle radius | R250mm |
| Min. bottle height | 30mm |
| Max. bottle height | 280mm |
| Max. square bottle height | 130mm |
| Max. printing speed | 6000pcs/hr |
| Power voltage | 220V 50Hz |
| Power consumption | 1KW |
| Air pressure | 4-6 kg/cm2 |
| Machine weight | 800KG |
| Dimensions | L2000×B2000×H1700mm |
UV200F
| Power voltage | 380V 50Hz |
| Power consumption | 4KW |
| Air pressure | 4-6 kg/cm2 |
| Machine weight | 300KG |
| Dimension | L2100×B660×H1700mm |
Printing samples
