Sensor Registration Silk Screen Printer Servo Drive Foot Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SBS380 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Printing Color: | Multi Colors | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Sensor Registration Silk Screen Printer,Foot Control Silk Screen Printer,Servo Drive Silk Screen Printer |
||
Product Description

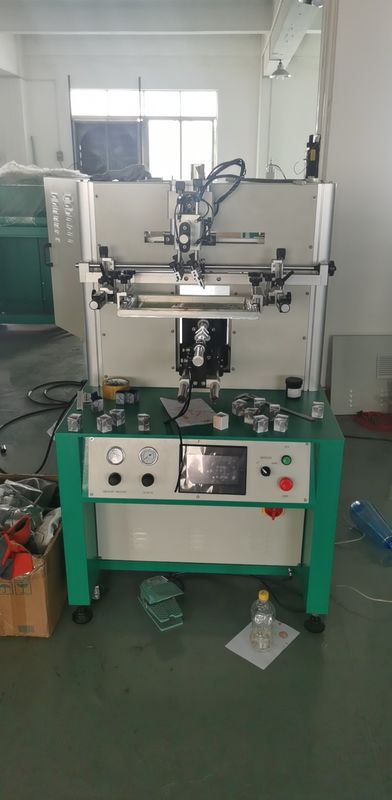

Sensor Register 1 To Multi Colors Semi Automatic Industrial Silk Screen Printing Machine Servo Drive foot Control
Technical Specifications:
| Mode | SBS380 | SBF460-R |
| Max. printing area | 350 X 250mm | 400 X 250mm |
| Max.screen frame size | 550X400mm | 600X400mm |
| Product diameter | Φ120mm | Φ120mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr |
Technical Characteristics
It is a well-designed and versatile machine that can print a wide range of shapes such as cylindrical, square, oval, conical and irregular shapes. Quick and easy tool changes, precise mechanical registration and convenient controls on the front panel make the SBS380 the perfect general-purpose screen printing machine for printing on glass, metal, plastics and ceramics.
- Pneumatic Control with Shock Absorber
- Microprocessor Control - PCB
- Vertical part lift with height adjustment
- Rodless cylinder to control printing stroke
- X/Y/R positioning instrument mounting table
- Linear ball bearings on hardened shafts
- Squeegee tilt, skew and height adjustable
- Adjustable screen frame angle and tilt
- Synchronized bottle filling system with regulator
- Adjustable squeegee pressure with pressure gauge
- Floor level and castors
- Foot switch control
- Servo drive for greater stability
Application Scope:
Mainly used for single to multi-color repeat screen printing of round/oval plastic containers for detergents, cosmetics, pharmaceuticals, foodstuffs and decorations.
1. If the register point is as shown in the red circle in the picture above, the color sensor is not needed. We can customize the machine to add or not to add sensors.
2. SBS380 can print oval/square/complex shape containers.
3. SBS380 are packed for more safety and durability.
4. All machines including elevator are controlled by servo drive.
