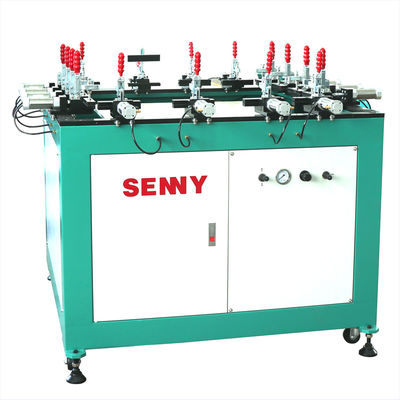

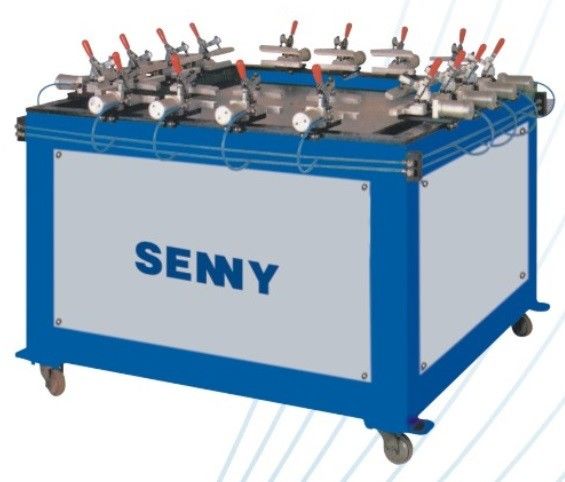

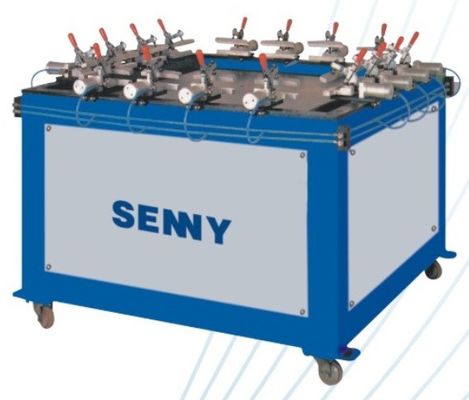

6kg/Cm2 Screen Printing Stretching Machine , 750X750mm Pneumatic Screen Stretcher
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | LW16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 20PCS/month |
|
Detail Information |
|||
| Plate Type: | Semi Automatic | After-sales Service Provided: | Video Technical Support And On-line Support |
|---|---|---|---|
| Condition: | New | Warrenty: | One Year |
| Type: | Auxiliary Machine | Frame Streching Size: | 800 X 800mm |
| Highlight: | 6kg/cm2 screen printing stretching machine,750X750mm screen printing stretching machine,750X750mm pneumatic screen stretcher |
||
Product Description
Semi Automatic Screen Streatching Frame Machine High High Precision Auxiliary Equipment Before Printing
Application Scope:
Suitable for stretching silk screen plate.
Features and Performance:
1. The type of equipment is four-sides movable, very suitable for stretching screen of high tension, easy to operate, the tension is stable and even.
2. According to screen frame size arbitrarily adjust to stretch screen, oblique clip head keep a better combination of clip and screen cloth.
3. The high-power and large stroke cylinders, other pneumatic components all come from Taiwan, so, it ensures the tension is stable and reliable.
4. Import adjustable handle, automatic synchronization, the tension is stable and even.
5. Choose quick clip of importing, to ensure the screen clip is flexible and stable; Clip head length is 120mm, with a plastic pad to avoid damaging screen cloth.
6. Soft rubber, good elasticity and ruggedization, so as to the screen cloth don't crack during the stretching screen.
7. Equiped with pneumatic screen frame base, easy to stretch screen.
8. Platforms can be made according to the quantity of clip heads.
Product Specifications:
| Frame size can be stretched | 750 X 750mm |
| Air Pressure |
4-6 kg/cm2 |
| Qty of air cylinder | 16 |
| Machine weight | 300KG |
| Dimensions |
L1250×B1250×H1100mm |
LW16 Screen Frame Stretching machine under producing:
