1000pcs/hr Pneumatic Multi Colors Flat Screen Printing Machine SGS Certified
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SBF460-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Printing Color: | Multi Colors | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 1000pcs/hr Flat Screen Printing Machine,Pneumatic Flat Screen Printing Machine,SGS Certified Flat Screen Printing Machine |
||
Product Description

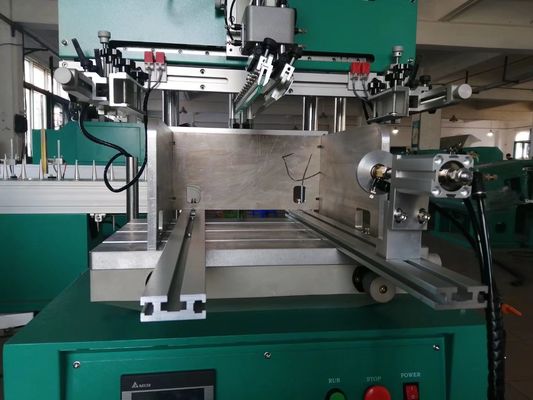

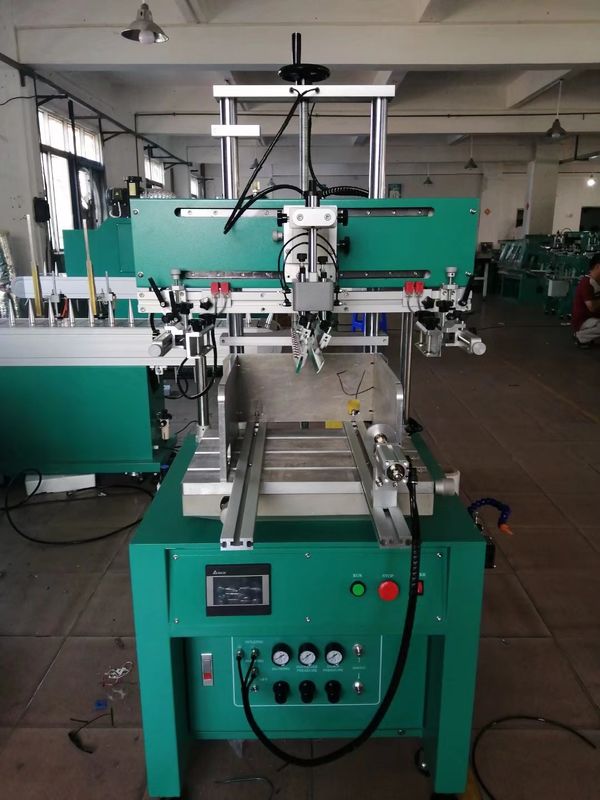

Precise Semi Automatic Flat Screen Printing Machine Pneumatic Silk Screen Printer Max Printing Area 400 X 250mm
Technical Specifications:
Below SBF460F is for flat articles and SBF460-R is for round and oval articles:
| Mode | SBF460-F | SBF460-R |
| Max. printing area | 400X250mm | 400X250mm |
| Max.screen frame size | 600X400mm | 600X400mm |
| Max.printing diameter | Φ120mm | |
| Max.printing speed | up to 1000pcs/hr | up to 600pcs/hr |
Technical Characteristics:
- SBF460-F is suitable for printing on any flat surface of various materials, such as circuit boards, glass panels, metal nameplates, PVC/PP/PE/PET square bottles, sliding floor signs, closets and so on.
- Pneumatic drive effectively reduces running noise.
- The stainless steel printing table can be adjusted in 3 directions to ensure the finest register.
- The printing table also has a vacuum function to hold the substrate throughout the cycle or intermittently.
- Even with very thick materials, there is plenty of room for printing.
- Squeegee and flood bar can be stopped before or after printing to accommodate different ink properties and different printing results.
- Branded pneumatic parts are used. Precision shafts and bearings are used for the moving parts of the machine to ensure smooth operation.
- Automatic hydraulic equipment is installed to strip the screen from the printing surface to effectively avoid smearing defects.
- Depth, pressure, speed, leveling and stroke of the squeezing lever/flooding lever can be adjusted to achieve various printing effects.
- Sensor register device can be added to find the exact position when printing the second color
Application Scope:
It is mainly used for single-color to multi-color repetitive screen printing of flat plastic containers, such as detergents, cosmetics, pharmaceuticals, food and decorative items, garbage cans, and non-slip floor signs.
